The ADIO series remote I/O boxes transmit various input and output signals between master devices such as PCs or PLCs and secondary devices including sensors and actuators. The IO-Link master type ADIO-ILD can exchange signals from secondary devices (IO-Link, standard I/O) to industrial networking protocols (EtherCAT, EtherNET/IP, PROFINET). The devices also offer enhanced durability with IP67 and IP69K protection rating.
Main Features:
- Upper-level communication protocol: EtherCAT, EtherNet/IP, PROFINET
- Lower level communication protocol: IO-Link ver. 1.1 (port class: Class A)
- Housing material: Zinc die casting
- Protection rating: IP67, IP69K (EtherCAT communication type model)
- Daisy chain connection (network communication and power supply)
- Maximum output current per port: 2 A
- I/O port setting and status monitoring (cable short / disconnection, connection status, etc.)

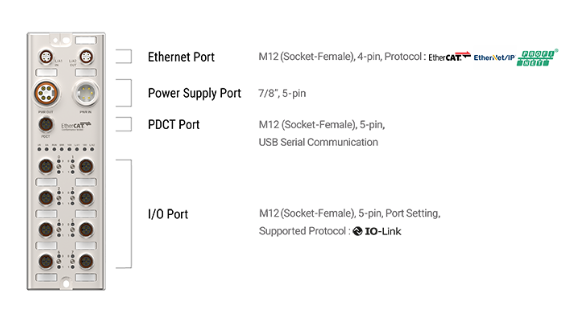

IO-Link Master Type Remote I/O Boxes
ADIO series can be used to exchange the sub-device signals including IO-Link communication and standard I/O to EtherCAT, EtherNet/IP and PROFINET communication.

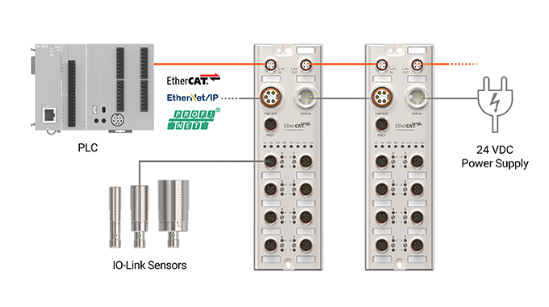

Convenient Wiring with Daisy Chain Structure
Power supply and network communication can be connected in daisy chain method, for easier maintenance and wiring.

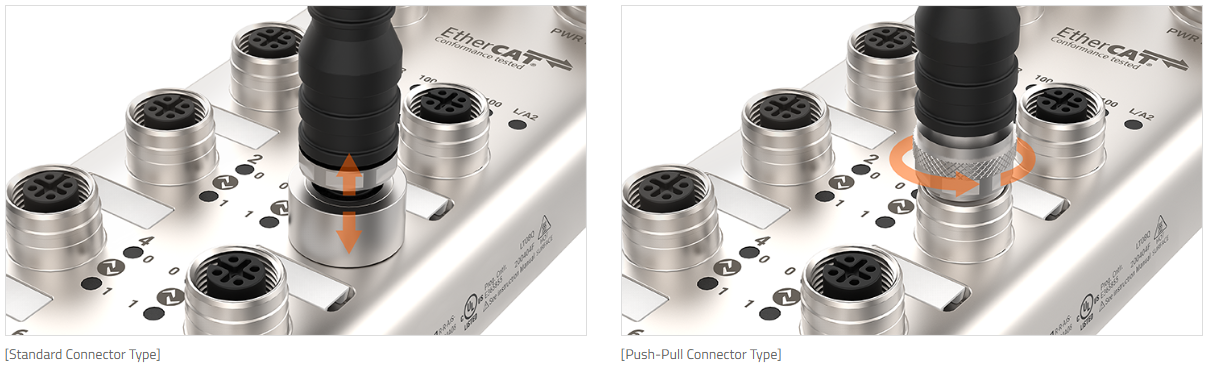

Push-Pull Connector Type Available
ADIO series supports both standard connector and push-pull connectors for easier connection and maintenance.

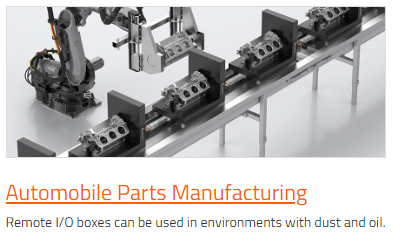

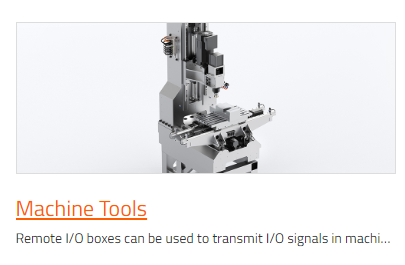

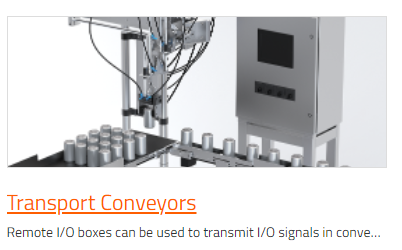

Applications:
