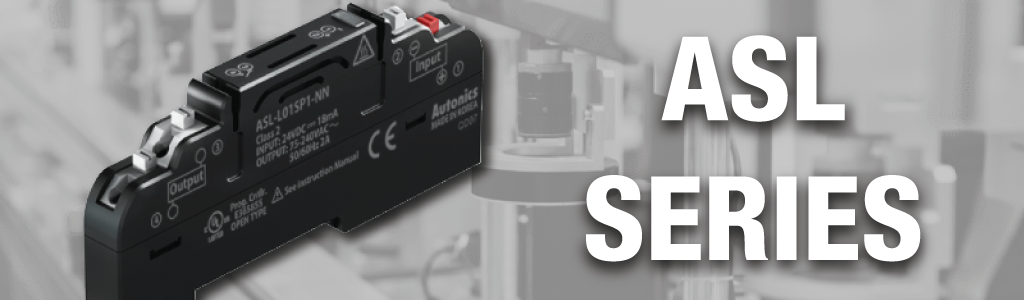

The ASL series solid state relay terminal blocks allow users to easily switch between NPN common and PNP common inputs using a jumper bar. Users can also change between independent and common output options using jumper bars. The screwless push-in type connection offers easy wiring and stable connection.
Common Features:
- Switch between independent and load common output with jumper bar
- Easy wiring and stable connection with screwless push-in connection
- Operation status indicator (blue LED)
1-Pin Type:
- Power common input using jumper bar
- DIN rail mount method
- Supported SSR:
- [Panasonic] AQZ202D, AQG12124, AQG22124
- [Omron] 3GMC-202P
- [Fujitsu] SN-24A01C
4-Pin Type:
- Switch between NPN and PNP input using jumper bar (patent)
- Solid state relay protection cover
- Convenient solid state relay removal with removal lever
- DIN rail mount method
- Supported SSR:
- [Panasonic] AQZ202D, AQG12124
- [Fujitsu] SN-24A01C
16-Pin Type:
- Solid state relay protection cover
- Convenient solid state relay removal with removal lever
- DIN rail mount and screw mount methods
- Supported SSR:
- [Panasonic] AQZ202D
