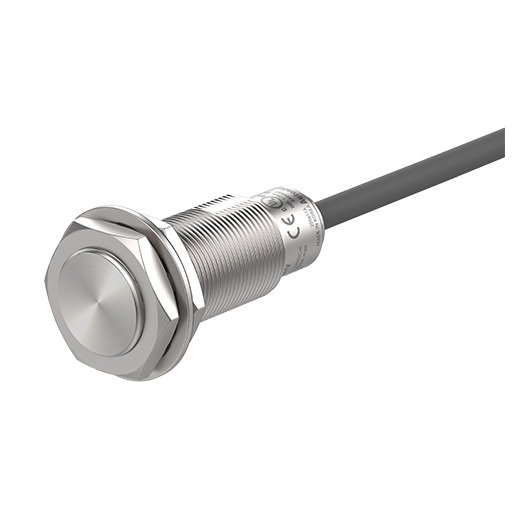

Full-Metal Cylindrical Inductive Proximity Sensors (Cable Type)
The PRF series cable type cylindrical proximity sensors feature full-metal housing and sensor head made of stainless steel 303. The robust sensors are highly resistant to deformation and corrosion and can be applied in diverse environments including food and beverage manufacturing, chemical, and metalworking industries. The 0.8 mm thick metal sensor head provides high resistance to impact and wear and the 360° ring type operation indicator allows users to quickly identify operation status from various angles. The sensors are available in Ø 8 mm, Ø 12 mm, Ø 18 mm, and Ø 30 mm sizes for easy installation in tight spaces and various other user settings.
Main features:
- High resistance to impact and wear caused by contact with workpieces or wire brushes (sensor head/housing : stainless steel)
- Reduced risk of malfunction caused by aluminum chips
- Excellent noise immunity with specialized sensor IC
- Built-in surge protection circuit and overcurrent protection circuit
- 360° ring type operation indicator (red LED) (except PRFT08-1.5DO-V model)
- Oil resistant cable
- IP67 protection structure (IEC standard)
