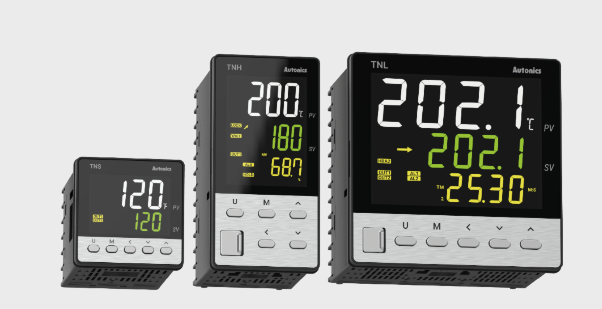

2-DOF PID Temperature Controllers (Program/Fixed Control)
The TN series temperature controllers offer high precision temperature control with two-degree- of-freedom PID algorithm, high-speed sampling speed of 50 ms and ±0.2% measurement accuracy. The temperature controllers feature simultaneous heating and cooling control, group PID, zone PID control and anti-reset windup functions for optimal temperature control in various applications.
Main Features:
- 2-DOF PID algorithm optimized for various control applications
- 50ms high-speed sampling rate and ±0.2% display accuracy
- Program control and fixed control models available
– Up to 10 patterns x 20 steps program setting (program control model)
– Timer function for preset operation (fixed control model) - Simultaneous heating/cooling and automatic/manual control function
- Control functions: Group PID, Zone PID, Anti Reset Windup (ARW)
- Control status monitoring of up to 10 events
- RS485 communication output model available
– Communication protocols: Modbus RTU/ASCII, PLC ladder-less, Sync-Master
– Communication speed: up to 115,200bps - Heater burnout alarm function (CT input)
- Parameter setting via PC
– Comprehensive Device Management Software (DAQMaster) provided
– Communication converter connection with front loader port (TNH, TNL only) - Shortcut key setting with front user key button (U)
- Easy maintenance with detachable terminal blocks
