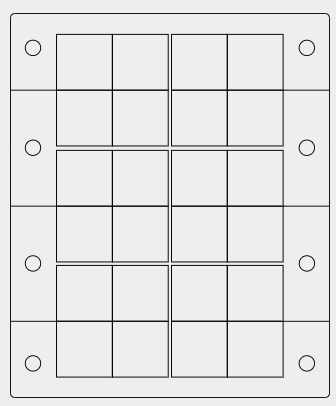

The KEL 16-2MT is our largest frame providing the ability to route and seal up to 96 cables.
The cable entry frames KEL 16-2MT series are KEL 16 frames extended with two additional middle frames for routing additional cables. Thus allowing the quick, easy and cost effective routing solution for
up to 96 cables. A flat rubber gasket is included in the shipment.
Excel Automation is an authorized icotek distributor. contact us with sales and technical support.
Advantages
- Warranty on pre-terminated cables remains
- Retrofits, repairs and maintenance can be done much more easily and quickly
- High cable density
- Strain relief according to EN 62444
- High stability, vibration resistant
Specifications
- IP rating: IP54
- Material: Polyamide
- Color: black (RAL 9005)
- Flame class: UL94-V0, self-extinguishing
- Temperature (°C): -40 – 140 °C (static)
- Temperature (°F): -40 – 284 °F
- Properties: Halogen free, Silicone free, Anti-corrosive (V2A versions)
- Mounting type: Screw type mounting
- Mounting height: 17 mm
- Mounting height (inch): 0.669 “
Accessories
- KEL-EMC
- KEL-EMC-PF
- KEL-EMC-Z
