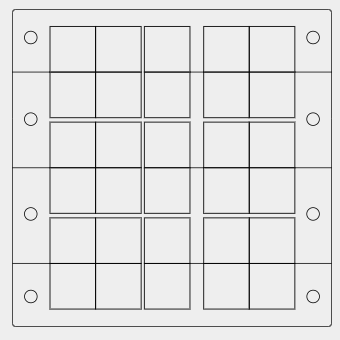

The KEL 24-2MT is our largest frame providing the ability to route and seal up to 120 cables.
The cable entry frames KEL 24-2MT series are KEL frames extended with two additional middle frames for routing additional cables. Thus allowing the quick, easy and cost effective routing solution for up to 120 cables. A flat rubber gasket is included in the shipment.
Excel Automation is an authorized icotek distributor. contact us with sales and technical support.
Advantages
- Warranty on pre-terminated cables remains
- Retrofits, repairs and maintenance can be done much more easily and quickly
- High cable density
- Strain relief according to EN 62444
- High stability, vibration resistant
Specifications
- IP rating: IP54
- Material: Polyamide
- Color: black (RAL 9005)
- Flame class: UL94-V0, self-extinguishing
- Temperature (°C): -40 – 140 °C (static)
- Temperature (°F): -40 – 284 °F
- Properties: Halogen free, Silicone free, Anti-corrosive (V2A versions)
- Mounting type: Screw type mounting
- Mounting height: 17 mm
- Mounting height (inch): 0.669 “, “
Accessories
- KEL-EMC
- KEL-EMC-PF
- KEL-EMC-Z
