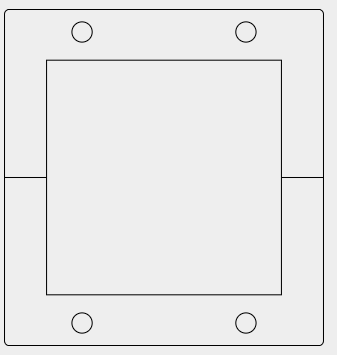

The KEL-JUMBO cable entry system for installation of cables and conduits with a diameter of up to
65 mm (2,559″), especially suited for supply cables.
The innovative grommet design with the flex-membrane provides flexing and adjustment of the position for larger and more rigid cables.
We recommend round cut-outs, which can be made using standard knockout tools.
Suggested cut-out: cable diameter +15 – 20%.
A flat rubber gasket is included in the shipment.
Excel Automation is an authorized icotek distributor. contact us with sales and technical support.
Advantages
- Installation of cables up to 65 mm
- KTF grommets allow flexing and adjustment of the cable position
- Retrofitting and maintenance can be carried out easily and quickly
- Strain relief according to EN 62444
Specifications
- IP rating: IP54
- UL Type: 12
- Material: Polyamide
- Color: black (RAL 9005)
- Flame class: UL94-V0, self-extinguishing
- Temperature (°C): -40 – 140 °C (static)
- Temperature (°F): -40 – 284 °F
- Properties: Halogen free, Silicone free, Anti-corrosive (V2A versions)
- Mounting type: Screw type mounting
- Mounting height: 35 mm
- Mounting height (inch): 1.378 “, “
Accessories
- KDR-ESR-TS8

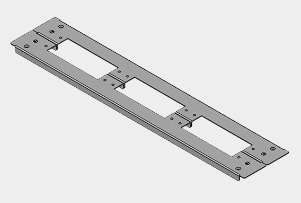

- KDR 2-TS8
- MP
