The compact, lightweight hand hydraulic punch driver makes it easy to punch holes into stainless V2A steel, mild steel, aluminum or plastics with a max. sheet thickness of 3 mm (0,118″) (V2A: 2 mm (0,079″)), due to its high hydraulic force. The cylinder of the punch driver rotates 360° on 3 axles, so maximum flexibility even in hard-to-reach places is provided.
The punch driver can be used with all icotek punches and also with punches of other manufacturers.

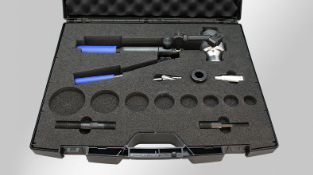

Scope of Delivery:
- 1 hand hydraulic punch driver (weight: 4.4 lb)
- 1 draw stud 3/8″ UNF to 3/4″ UNF, L: 110 mm (4,331″)
- 1 draw stud 3/4″ UNF, L: 130 mm (5,118″)
- 1 spacer
- 1 tube lubricant
- 1 HSS co-pilot drill (multi step drill)
- 1 robust plastic storage case
Excel Automation is authorized icotek distributor. Contact us for sales and technical support.
Advantages
- Maximum flexibility due to 360° head rotation
- High hydraulic force (60 kN, 8700 psi) for easy punching
- Compact, lightweight aluminum design (4.4 lb)
- Fast and easy operation
- Punch driver also suitable for punches by other manufacturers
Specifications
- Punching force: 60 kN
- Operating pressure: 8700 psi
- Punch driver weight: 4.4 lb
- Material punch driver: Aluminum
- Material punch: Steel, hardened and burnished
Accessories
- Round Punches
- Rectangular & Square Punches
