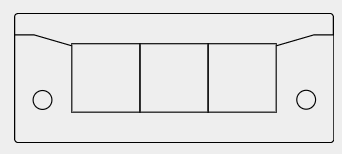

KEL-ER-E3 Cable Entry Frames

Split cable entry system KEL-ER-E3 for routing and sealing up to 3 cables with connectors, providing an IP65 / IP66 / UL type 12 rating and strain relief for cable diameters from 1 to 16 mm (0,039 to 0,630″) (single-hole grommets KT 1 – 15). It is particularly suited for flat connectors. The small frame is ideal for applications with limited space.

The cable entry system is easy to install. Cable grommets are placed into compartments in the frame and are securely fixed to the frame during assembly. A flat rubber gasket is included in the shipment.

Excel Automation is an authorized icotek distributor. contact us with sales and technical support.

Advantages

  • Warranty on pre-terminated cables remains
  • Retrofits, repairs and maintenance can be done much more easily and quickly
  • Strain relief according to EN 62444
  • Space saving shape
  • Optimal for D-Sub connectors
  • High stability, vibration resistant

Specifications

  • IP rating: IP65, IP66
  • UL Type: 12
  • Material: Polyamide
  • Color: black (RAL 9005)
  • Flame class: UL94-V0, self-extinguishing
  • Temperature (°C): -40 – 140 °C (static)
  • Temperature (°F): -40 – 284 °F
  • Properties: Halogen free, Silicone free, Anti-corrosive (V2A versions)
  • Mounting type: Screw type mounting
  • Mounting height: 17 mm
  • Mounting height (inch): 0.669 “

    Accessories

    • KEL-EMC
    • KEL-EMC-PF
