for Cables with Connectors, Tool-Less Assembly / UL Type 12 / IP54

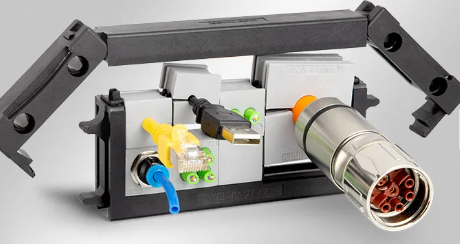

The KEL-FA range is a compact system to route and seal pre-terminated cables and conduits or pneumatic hoses utilizing KT series grommets. After populating the entry frame with grommets and cables, the cover is put on and the two clamping levers are locked with the lower part by pressing them down. The twist-proof construction of the KEL-FA enables intuitive assembly. Routing and sealing with IP54 / UL Type 12 for cable diameters from 1 to 35 mm.
The KEL-FA frames match precisely the cut-out dimensions for 10-, 16- and 24-pin standard industrial connectors. These KEL-FA frames can either be screw mounted or simply snapped into the KEL-SNAP frame.
Specifications:
- IP rating (EN 60529) IP54
- UL Type (UL 50E) UL Type 12
- Material Polyamide
- Flame class UL94-V0, self-extinguishing
- Operating temperature -40 C° to 140 C°
- Properties UV-resistant, silicone-free, anti-corrosive, halogen-free
- Mounting options Screw type mounting, Snap-in with KEL-SNAP
Advantages & Benefits:
- Integrated sealing
- Quick assembly without tools
- Strain relief according to EN 62444 (when using KT single-hole grommets)
- Very high cable density with multi-hole grommets
- High flexibility with multi-range grommets and the IMAS-CONNECT™ system
- Warranty on pre-terminated cables remains
- Retrofits, repairs, and maintenance can be done much more easily and quickly
- Wide variety
Contact us for product types, product sizes, and for any questions.
