for 90° Feed-In of Cables with Connectors / IP65

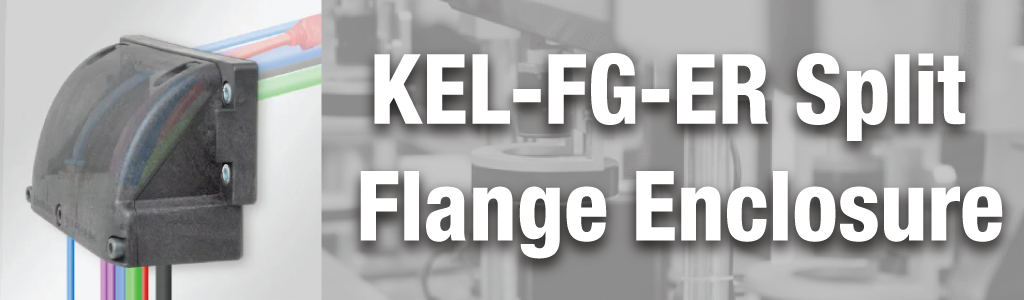

The multi-cable transit frames KEL-FG-ER are suited for installation of cables with connectors and conduits at an angle of 90° to the cabinet, enclosure or machine wall, providing an IP65 rating and strain relief for cable diameters from 1 to 16 mm (single-hole grommets KT 1 – 15) and 13 to 35 mm (single-hole grommets KTG 13 – KT 34).
The KEL-FG-ER-A frame matches exactly the cut-out dimensions for 24-pin standard industrial connectors. The KEL-FG-ER-B is suited for cut-outs 36 × 46 mm.
The single-row versions KEL-FG-ER-E are particularly suited for flat connectors. The small frames are ideal for applications with limited space.
Due to the integrated seal on the flange enclosure, a protection class of up to IP65 is provided. An additional flat rubber gasket is included in the shipment.
Specifications:
- IP rating (EN 60529) IP54, IP55, IP64, IP65
- Material Polyamide
- Flame class UL94-V0, self-extinguishing
- Operating temperature -40 C° to 80 C°
- Properties vibration proof, UV-resistant, silicone free, halogen free
- Mounting options Screw type mounting
- Mounting height 57.5 mm
Advantages & Benefits:
- Integrated seal
- Protection class IP65 acc. to EN 60529
- Installation at an angle of 90° to the wall
- Mechanical protection of the cable directly at the place of entry
- Protection against water splashes and drips
- Ideal for cables with connectors (max. Ø 35 mm)
- Strain relief according to EN 62444
- High flexibility when using the IMAS-CONNECT™ system
Contact us for product type, product size, and for any questions.
