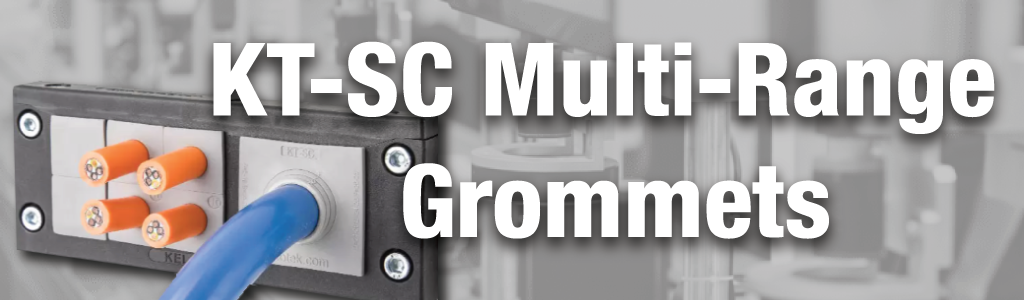

The KT-SC grommets accept a wide range of cable diameters. This is a great benefit when the exact cable diameter is not known in advance.
The single circular membrane can be peeled away to accommodate the specific diameter of the cable or hose. For this purpose, only a small hole between the rings needs to be pierced. Then the corresponding ring can be removed. The peeled-off area is always round, ensuring a secure seal around cable/hose.
The KT-SC cable grommet is based on the KT grommet and enables flexible routing and sealing (IP54) of electrical cables and pneumatic hoses with diameters from 4 – 28 mm.
The KT-SC cable grommets are not split and therefore only usable for cables without connectors.
Specifications:
IP rating (EN 60529) IP54
Material Elastomer
Flame class UL94-V0, self-extinguishing
Operating temperature -40 C° to 100 C°
Properties silicone free, halogen free
Advantages & Benefits:
Large clamping range
Easy storage
Circular membranes can be peeled off easily
It is possible to install rigid cables at angles
Ideal for wiring non pre-terminated cables locally
