The ELC 100 safety light curtains focus on the essentials when safeguarding points of operation.
Features:
- Safety at an attractive price
- Flexible integration with little effort
- Simple mechanical and electrical design enables quick installation – no configuration is required.
- Quick and optimal alignment with multi-level alignment display
- Reliable operation due to robust design
- Extremely shock and vibration proof, e.g., for use on presses
Key Highlights:
Quick and optimal alignment
- The multi-level alignment display makes commissioning the devices especially easy.
- Well-visible, bright LEDs: the alignment result can be monitored right from the receiver
- The optimal alignment is quickly achieved and displayed by four blue LEDs
- This saves time and money during commissioning and offers reserves in operation
Simple and flexible integration
- Simple and flexible integration in the machine design.
- Flexible cable routing in all directions
Due to the specially designed housing, the cable is always optimally routed into the machine’s interior and protected simultaneously. - Device design without blind zones
This allows the units to be mounted flush against boundaries without creating blind zones. No additional safeguarding measures are required.
Robust in operation
- Robust housing, made of metal throughout
- The tall side walls protect the front screen
- Their unique design makes the ELC100s extremely shock and vibration-proof
- This also makes the devices suitable for use on machines subject to strong accelerations or vibrations, such as presses.
Quickly connected
- Quick, easy, and cost-efficient installation
- The M12 connector is easily accessible via the fixed cable
- Very easy connection of the devices due to the
4-pin design for power and OSSDs - No configuration required
- The connection cables do not require any shielding

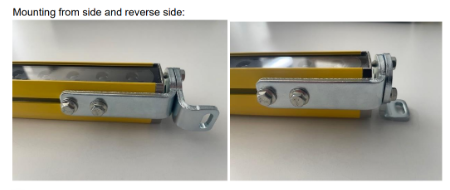

Mounting – BT-2T-E100 (NEW – Released August 2024)
- Includes two turnable brackets; with these brackets, a compact and turnable mounting is achieved.
- Cost-effective standard bracket
- Compact, economical turnable bracket for the mounting in one of the C-grooves of the ELC.

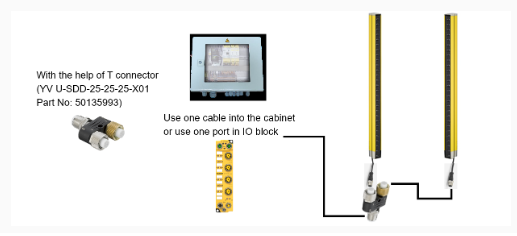

Talking about cost-effectiveness, one of the most significant benefits is the Single Cable solution.
ELC – Target Applications:

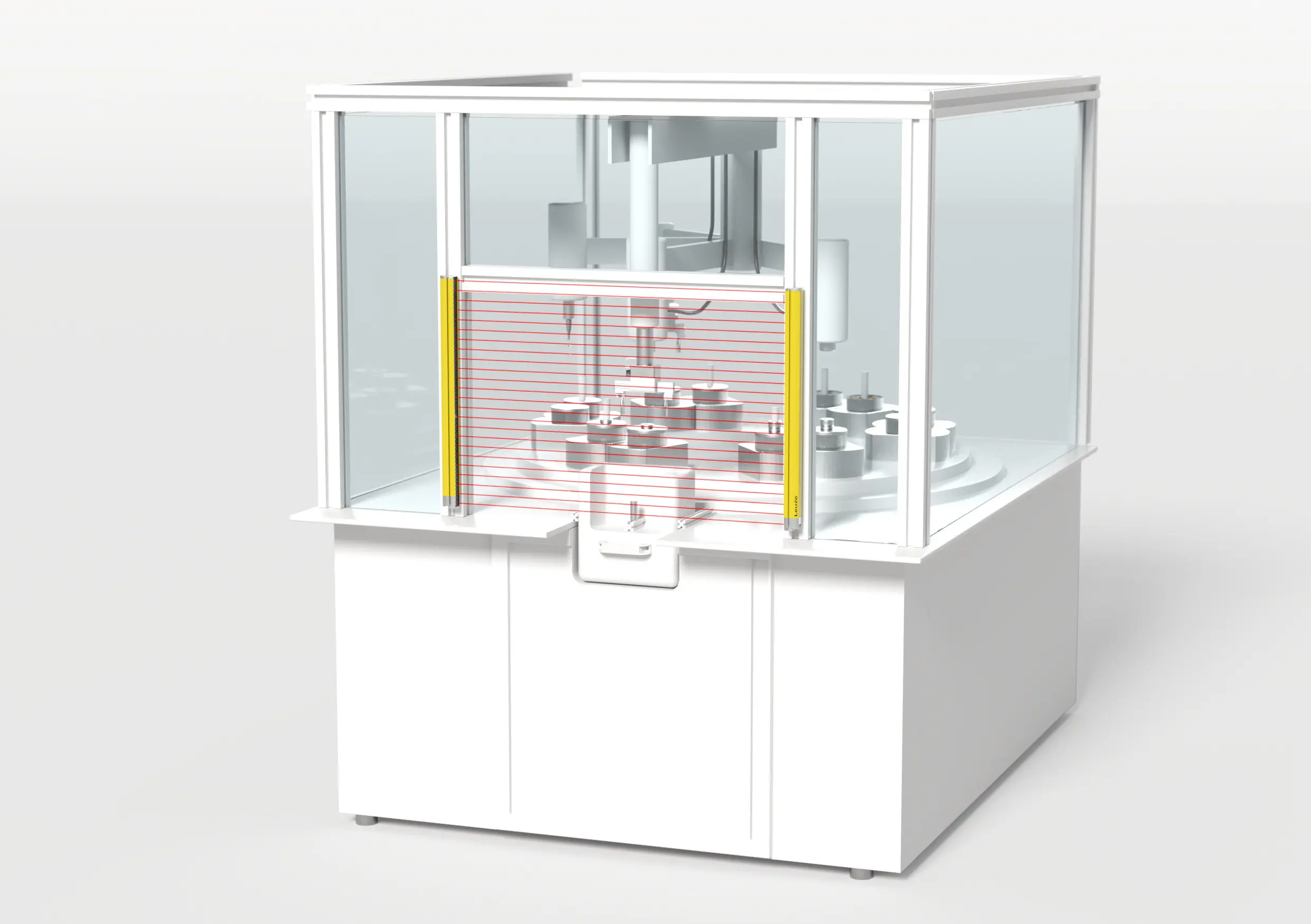

Point of operation guarding – Key Features
The safety light curtains ELC 100 with 17 mm and 30 mm resolution detect fingers and hands and allow for short safety distances.
Thanks to the design without blind zones and the flexible cable outlet, the devices can be flexibly integrated into the machine design.

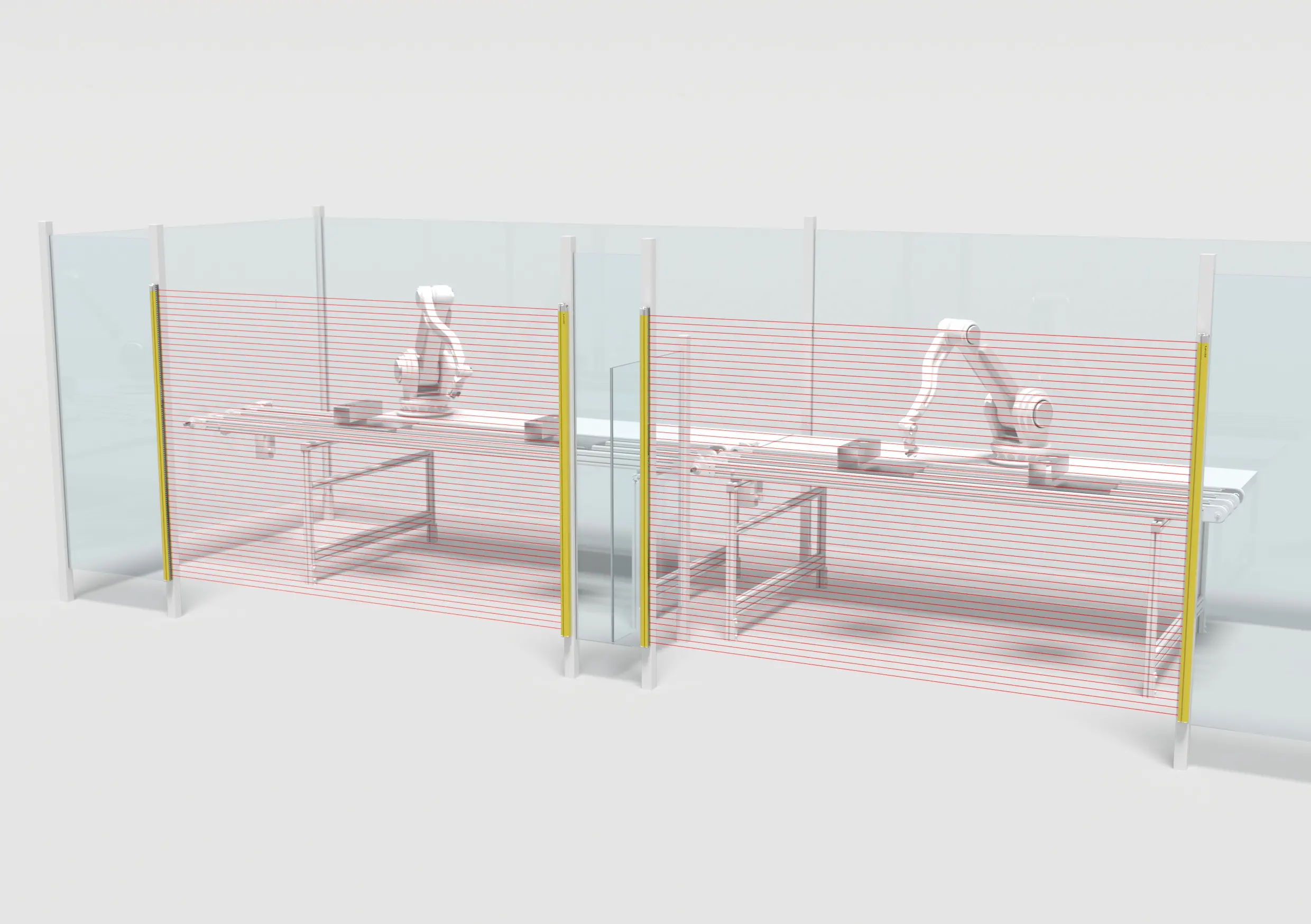

Access guarding – Key Features
- The ELC 100 with 30 mm resolution for hand detection allows for short safety distances and thus enables compact system design.
- With a protective field length of up to 1.500 mm, potential reaching over is prevented.
