Compact size sensor realizes wide sensing area & long sensing range

Features

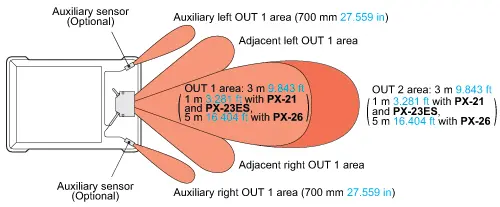

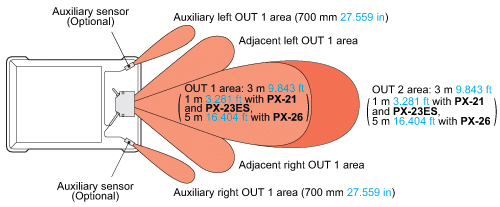

Ideal sensing area with very little dead zone

The advanced optical system of the PX-2 series reduces the dead zones in front of an automatic guided vehicle (AGV).
The dead zones at the sides are further minimized if auxiliary sensors which can be easily mounted with connectors are used.
(For PX-24, PX-24ES, PX-23ES and PX-26)

Sensing areas selectable as per route condition

Sensing areas can be selected with switches to suit the route conditions of an AGV.
Further, in case of PX-24ES and PX-23ES, the sensing areas can also be selected with external signals.

Compact size for space-saving

Its size is half of a conventional model, and the attached cable orientation is freely adjustable. Hence, it can also fit in a small AGV.
Moreover, sensitivity adjustment can be done on the front face.

Long sensing range 5 m 16.404 ft type

PX-26 has a long sensing range of 5 m 16.404 ft. Even on a high-speed AGV, it can detect an object quite early so that slowing down and stopping are smooth.

Sleep function

The sensor can be put into the sleep (stand-by) condition when it is not used and can be restored to operating condition by an external signal.
Consequently battery is conserved as the power consumption is reduced to 1/5.

Automatic interference prevention function

One PX-2 sensor can simultaneously receive beams from 25 Nos. of other PX-2 sensors without resulting in any interference. Even if AGVs are facing each other, the PX-2 sensor on one AGV reliably detects the other AGVs.
Hence, it can be safely used even at a place where several AGVs are moving.

External sensitivity adjustment

The sensitivity of the sensor can be adjusted, within the range set by the manual adjuster, by an external input.
(For PX-24, PX-24ES, PX-23ES and PX-26)
