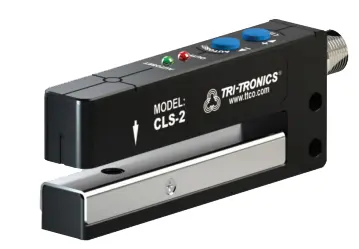

Features and Options:
• One button AUTOSET (Gap Set)
• Adjustable Threshold
• Cable and Connector (M12 & M8) Versions
• Removable Stainless Steel Gap Plate
• Durable and Robust Anodized Aluminum Housing
• Bottom or side mounting configurations
Quick Start:
Simple Setup Start c Put the Gap in view, press and hold the AUTOSET. This will result in a perfect setup 99% of the time. If you have any false triggers, tap UP (r_) to reduce threshold, or tap DOWN (s +) to increase threshold.
Specifications:
Supply Voltage
• 12 to 30Vdc
• Polarity Protected
Note: For use in Class 2 Circuits
Current Requirements
• 70mA @ 12Vdc, 35mA @ 30Vdc
Digital Outputs
• (1) NPN and/or (1) PNP (depending on model) open collector output 150mA Max; <2V Residual Voltage
• All outputs are continuously short circuit protected
Remote Autoset Input
• Active high (PNP) or active low (NPN), depending on model (1mA)
Note: Input not available on “L” models
Diagnostic Indicators
• Green LED AUTOSET IndicatorIlluminates when sensor is powered
“ON”; flashes upon AUTOSET adjustment
• Red LED Output Indicator– Illuminates when the sensor’s output transistors are “ON”.
Note: If output LED flashes on power up, a short circuit condition exists.
Push Button Control
• Two (2) push button controls
• AUTOSET (for Gap AUTOSET)
• LT/DK (toggles between light on or dark on)
• Manual threshold adjustment
Hysteresis
• Dynamic – adjusted by AUTOSET
Response Time
• 225µs
Repeatability
• 75µs
Ambient Temperature
• 4°C to 50°C (39°F to 122°F)
Rugged Construction
• Chemical resistant, high impact Aluminum housing
• Conforms to heavy industry grade CE requirements
• Waterproof ratings: IP65*
*Presence of water on transducers will prevent sensor from functioning. Full functionality will be restored once transducers are dry.

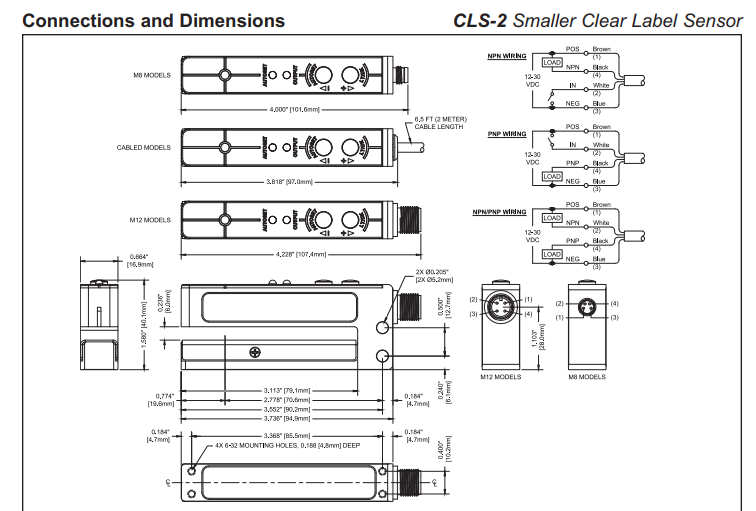

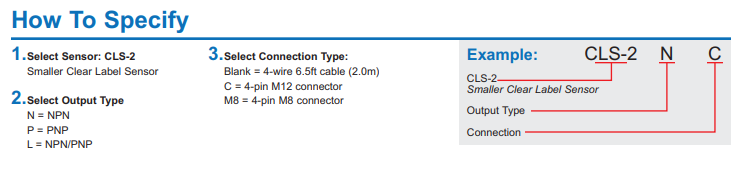

Connections
• 4-Wire 6.5ft cable (2.0m)
• 4-Pin M12
• 4-Pin M8 connector
