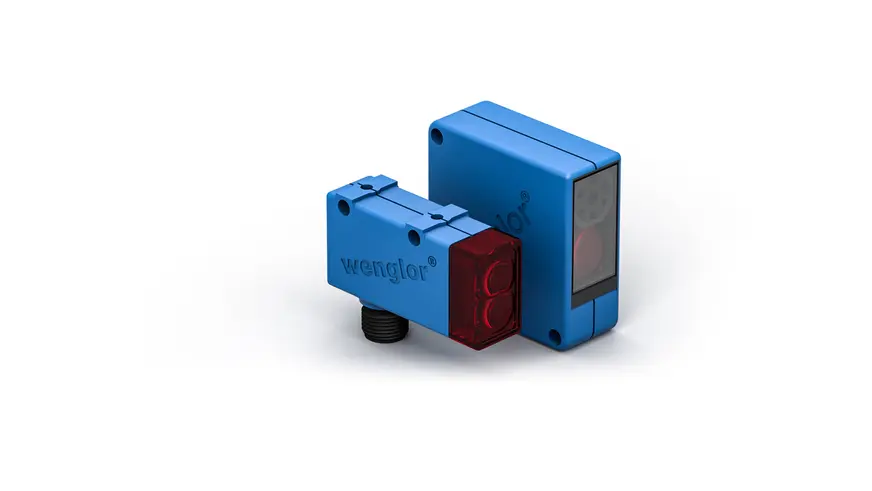

Contrast sensors with switching or analog output measure the brightness of objects. Sensors with switching output compare the brightness level with a reference value in order to detect contrast marking, for example. Sensors with analog output provide the measured brightness as a proportional voltage signal in order to monitor brightness curves, for example.
Showing all 5 results
-
YM24PAH2ABF
$368.00Contrast Sensor Features at a Glance High switching frequency Small light spot Time delay can be activated Optical Data Range 150 mm Setting Range 60 … 150 mm Switching Hysteresis (Lateral Approach) < 50 µm Light Source Laser (red) Wavelength 660 nm Service Life (T = +25 °C) 100,000 h Laser Class (EN 60825-1) 1 Max. Ambient Light 10,000 Lux Light Spot Diameter 1 mm
Add to cart -
YM24PAH2ANZ
$368.00Contrast Sensor Features at a Glance High switching frequency Small light spot Time delay can be activated Optical Data Range 150 mm Setting Range 60 … 150 mm Switching Hysteresis (Lateral Approach) < 50 µm Light Source Laser (red) Wavelength 660 nm Service Life (T = +25 °C) 100,000 h Laser Class (EN 60825-1) 1* Max. Ambient Light 10,000 Lux Light Spot Diameter 1 mm
Add to cart -
YP11MVV80
$830.00Contrast Sensor Features at a Glance Analog output (0…10 V DC) Switching frequency: 10 kHz Optical Data Working Range 50 … 100 mm Measuring Range 50 mm Resolution 20 mV Switching Hysteresis 200 mV Light Source Laser (red) Wavelength 660 nm Service Life (T = +25 °C) 100,000 h Laser Class (EN 60825-1) 2 Max. Ambient Light 10,000 Lux Light Spot Diameter 0.5 mm at a Distance of … Continue reading YP11MVV80
Add to cart -
YP11VAH3ABF
$544.00Contrast Sensor Features at a Glance Light spot can be focused Switching frequency: 20 kHz Adjustable time delay Optical Data Range 100 mm Setting Range 60 … 100 mm Switching Hysteresis (Lateral Approach) < 50 µm Light Source Laser (red) Wavelength 660 nm Service Life (T = +25 °C) 100,000 h Laser Class (EN 60825-1) 2 Max. Ambient Light 10,000 Lux Light Spot Diameter 0.8 mm
Add to cart -
YP11VAH3ANZ
$544.00Contrast Sensor Features at a Glance Switching frequency: 20 kHz Adjustable time delay Light spot can be focused Optical Data Range 100 mm Setting Range 60 … 100 mm Switching Hysteresis (Lateral Approach) < 50 µm Light Source Laser (red) Wavelength 660 nm Service Life (T = +25 °C) 100,000 h Laser Class (EN 60825-1) 2 Max. Ambient Light 10,000 Lux Light Spot Diameter 0.8 mm
Add to cart
