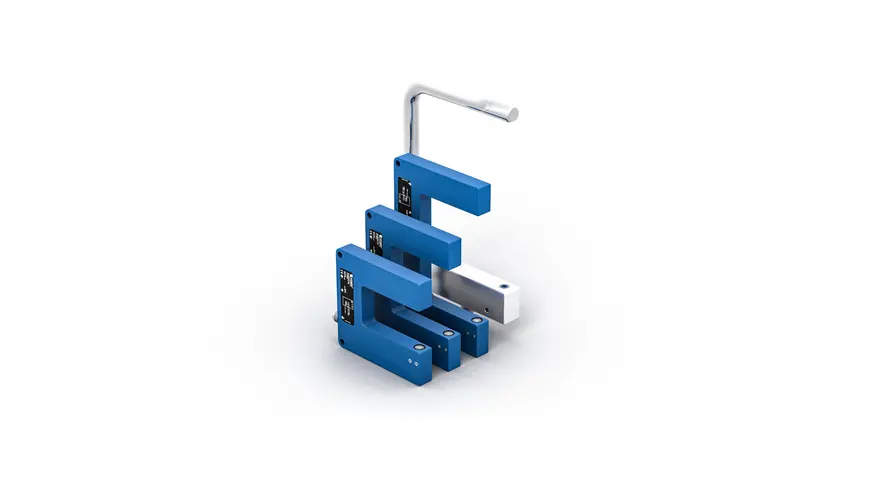

Fork sensors work with either red light or a collimated laser light beam. The emitter and receiver are arranged opposite each other in a plastic or stainless steel housing. Fork sensors with collimated laser light beam are particularly effective for detecting the smallest objects or clear glass.
Showing all 11 results
-
P1HJ001
$696.00Fork Sensor Features at a Glance Recognition of transparent objects Collimated laser beam (Ø 0.35 mm diameter over the entire fork width) Rugged, corrosion-free V4A stainless steel housing in hygienic design Teach-in key and external teach-in Optical Data Fork Width 120 mm Smallest Recognizable Part 40 µm Smallest Detectable Gap 50 µm Switching Hysteresis 10 % Light Source Laser (red) Service … Continue reading P1HJ001
Add to cart -
P1HJ002
$765.00Fork Sensor Features at a Glance Recognition of transparent objects Collimated laser beam (Ø 0.35 mm diameter over the entire fork width) Rugged, corrosion-free V4A stainless steel housing in hygienic design Teach-in key and external teach-in Optical Data Fork Width 220 mm Smallest Recognizable Part 40 µm Smallest Detectable Gap 50 µm Switching Hysteresis < 10 % Light Source Laser (red) Service … Continue reading P1HJ002
Add to cart -
P1HJ004
$665.00Fork Sensor Features at a Glance Recognition of transparent objects Collimated laser beam (Ø 0.35 mm diameter over the entire fork width) Rugged, corrosion-free V4A stainless steel housing in hygienic design Teach-in key and external teach-in Optical Data Fork Width 120 mm Smallest Recognizable Part 40 µm Smallest Detectable Gap 50 µm Switching Hysteresis < 10 % Light Source Laser (red) Service … Continue reading P1HJ004
Add to cart -
P1HJ005
$736.00Fork Sensor Features at a Glance Recognition of transparent objects Collimated laser beam (Ø 0.35 mm diameter over the entire fork width) Rugged, corrosion-free V4A stainless steel housing in hygienic design Teach-in key and external teach-in Optical Data Fork Width 220 mm Smallest Recognizable Part 40 µm Smallest Detectable Gap 50 µm Switching Hysteresis < 10 % Light Source Laser (red) Service … Continue reading P1HJ005
Add to cart -
P1HJ006
$649.00Fork Sensor Features at a Glance Recognition of transparent objects Collimated laser beam (Ø 0.35 mm diameter over the entire fork width) Rugged, corrosion-free V4A stainless steel housing in hygienic design Teach-in key and external teach-in Optical Data Fork Width 50 mm Smallest Recognizable Part 40 µm Smallest Detectable Gap 50 µm Switching Hysteresis < 10 % Light Source Laser (red) Service … Continue reading P1HJ006
Add to cart -
P1HJ007
$619.00Fork Sensor Features at a Glance Recognition of transparent objects Collimated laser beam (Ø 0.35 mm diameter over the entire fork width) Rugged, corrosion-free V4A stainless steel housing in hygienic design Teach-in key and external teach-in Optical Data Fork Width 50 mm Smallest Recognizable Part 40 µm Smallest Detectable Gap 50 µm Switching Hysteresis < 10 % Light Source Laser (red) Service … Continue reading P1HJ007
Add to cart -
P1HJ101
$124.00Features at a Glance Miniature design (20 × 40 mm) 2 switching outputs and switching status indicator Sensitivity set via IO-Link 1.1 Flexible cable outlet with 4-pin plug, M8 × 1 Detect extremely small parts starting at 0.7 mm Optical Data Fork Width 9 mm Smallest Recognizable Part 0.7 mm Light Source Red Light Service Life (T = +25 °C) 100,000 h Max. Ambient Light 10,000 Lux Repeat Accuracy 0.05 mm
Add to cart -
YH03NCT8
$368.00Fork Sensor Features at a Glance Repetition accuracy: 5 µm Teach-in Recognition of transparent objects Fine light beam (0,6 mm) over entire width of fork Optical Data Fork Width 30 mm Smallest Recognizable Part 40 µm Smallest Detectable Gap 50 µm Switching Hysteresis < 20 µm Light Source Laser (red) Wavelength 655 nm Service Life (T = +25 °C) 100,000 h Laser Class (EN … Continue reading YH03NCT8
Add to cart -
YH03PCT8
$368.00Fork Sensor Features at a Glance Repetition accuracy: 5 µm Teach-in Recognition of transparent objects Fine light beam (0,6 mm) over entire width of fork Optical Data Fork Width 30 mm Smallest Recognizable Part 40 µm Smallest Detectable Gap 50 µm Switching Hysteresis < 20 µm Light Source Laser (red) Wavelength 655 nm Service Life (T = +25 °C) 100,000 h Laser Class (EN … Continue reading YH03PCT8
Add to cart -
YH08NCT8
$368.00Fork Sensor Features at a Glance Recognition of transparent objects Fine light beam (0,6 mm) over entire width of fork Repetition accuracy: 5 µm Teach-in Optical Data Fork Width 80 mm Smallest Recognizable Part 40 µm Smallest Detectable Gap 50 µm Switching Hysteresis < 20 µm Light Source Laser (red) Wavelength 655 nm Service Life (T = +25 °C) 100,000 h Laser Class (EN … Continue reading YH08NCT8
Add to cart -
YH08PCT8
$368.00Fork Sensor Features at a Glance Repetition accuracy: 5 µm Recognition of transparent objects Fine light beam (0,6 mm) over entire width of fork Teach-in Optical Data Fork Width 80 mm Smallest Recognizable Part 40 µm Smallest Detectable Gap 50 µm Switching Hysteresis < 20 µm Light Source Laser (red) Wavelength 655 nm Service Life (T = +25 °C) 100,000 h Laser Class (EN … Continue reading YH08PCT8
Add to cart
