Wenglor Safety Technology
Shop by Brand
Safety technology for body, hand and finger protection is used to protect both man and machine. Certified according to international standards, light barriers and curtains with or without muting functions, safety switches, locking devices, emergency stops, relays and protection columns protect all production systems.
- Command Devices
- Electro-Sensitive Protective Equipment
- Muting Sets
- Safety Guards
- Safety Relays and Analysis Modules
Showing 1–24 of 248 results
-

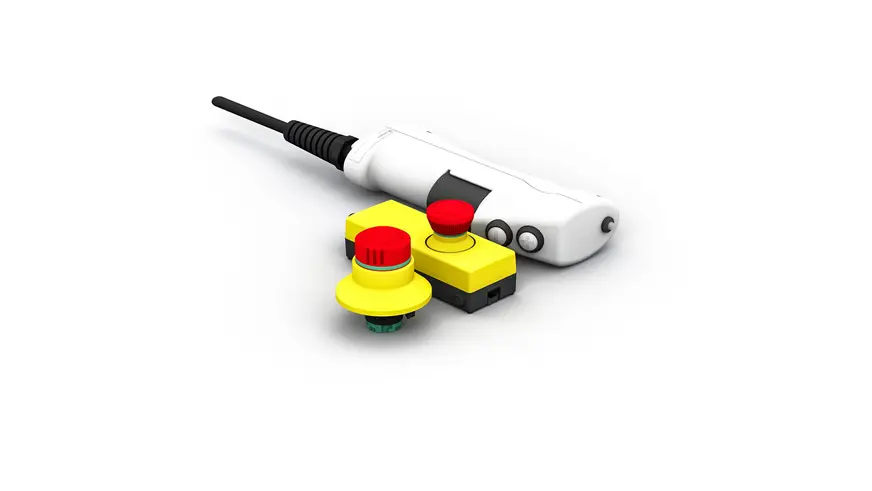

Wenglor Command Devices (13)
-
Wenglor Electro-Sensitive Protective Equipment (200)
-
Wenglor Muting Sets (3)
-
Wenglor Safety Guards (25)
-
Wenglor Safety Relays and Analysis Modules (7)
-
S2DF002
$493.00Enabling Switch Features at a Glance One-hand operation thanks to ergonomic design Rubberized enabling switch Feedback (vibration signal and LED) upon approval Electrical Data Temperature Range -5 … 60 °C Mechanical Data Housing Material Plastic Service Life (Switching Cycles) 1000000 Degree of Protection IP54 Connection Cable, 10-wire, 5 m Safety-relevant Data B10d Switching Cycles 100 000 Number of NO … Continue reading S2DF002
Add to cart -
S2DF003
$508.00Enabling Switch Features at a Glance One-hand operation thanks to ergonomic design Rubberized enabling switch Electrical Data Temperature Range -5 … 60 °C Mechanical Data Housing Material Plastic Service Life (Switching Cycles) 1000000 Degree of Protection IP54 Connection Cable, 12-wire, 10 m
Add to cart -
S2DF004
$493.00Enabling Switch Features at a Glance One-hand operation thanks to ergonomic design Rubberized enabling switch Electrical Data Temperature Range -5 … 60 °C Mechanical Data Housing Material Plastic Service Life (Switching Cycles) 1000000 Degree of Protection IP54 Connection Coil cable, 12-wire, 5 m
Add to cart -
S2FP001
$460.00Guard Locking Device Features at a Glance Performance Level: Cat. 4 PL e Power to unlock principle Continuously monitored locking force of 1150 N Electrical Data Sensor Type Locking unit Supply Voltage 20.4 … 26.4 V DC Response Time ≤ 100 ms Risk time ≤ 200 ms Temperature Range 0 … 60 °C Storage temperature -10 … 90 °C Safety Output OSSD Number of safety outputs (OSSDs) 2 PNP Safety … Continue reading S2FP001
Add to cart -
S2FP002
$533.00Guard Locking Device Features at a Glance Escape release Performance Level: Cat. 4 PL e Power to unlock principle Continuously monitored locking force of 1150 N Electrical Data Sensor Type Locking unit Supply Voltage 20.4 … 26.4 V DC Response Time ≤ 100 ms Risk time ≤ 200 ms Temperature Range 0 … 60 °C Storage temperature -10 … 90 °C Safety Output OSSD Number of safety outputs (OSSDs) … Continue reading S2FP002
Add to cart -
S2FP003
$460.00Guard Locking Device Features at a Glance Power to lock principle Performance Level: Cat. 4 PL e Continuously monitored locking force of 1150 N Electrical Data Sensor Type Locking unit Supply Voltage 20.4 … 26.4 V DC Response Time ≤ 100 ms Risk time ≤ 200 ms Temperature Range 0 … 60 °C Storage temperature -10 … 90 °C Safety Output OSSD Number of safety outputs (OSSDs) 2 PNP Safety … Continue reading S2FP003
Add to cart -
S2FP004
$476.00Guard Locking Device Features at a Glance Performance Level: Cat. 4 PL e Power to unlock principle Continuously monitored locking force of 1150 N Electrical Data Sensor Type Locking unit Supply Voltage 20.4 … 26.4 V DC Response Time ≤ 100 ms Risk time ≤ 200 ms Temperature Range 0 … 60 °C Storage temperature -10 … 90 °C Safety Output OSSD Number of safety outputs (OSSDs) 2 PNP Safety … Continue reading S2FP004
Add to cart -
S2FP005
$549.00Guard Locking Device Features at a Glance Escape release Performance Level: Cat. 4 PL e Power to unlock principle Continuously monitored locking force of 1150 N Electrical Data Sensor Type Locking unit Supply Voltage 20.4 … 26.4 V DC Response Time ≤ 100 ms Risk time ≤ 200 ms Temperature Range 0 … 60 °C Storage temperature -10 … 90 °C Safety Output OSSD Number of safety outputs (OSSDs) … Continue reading S2FP005
Add to cart -
S2FP006
$476.00Guard Locking Device Features at a Glance Power to lock principle Performance Level: Cat. 4 PL e RFID encoding Continuously monitored locking force of 1150 N Electrical Data Sensor Type Locking unit Supply Voltage 20.4 … 26.4 V DC Response Time ≤ 100 ms Risk time ≤ 200 ms Temperature Range 0 … 60 °C Storage temperature -10 … 90 °C Safety Output OSSD Number of safety outputs (OSSDs) … Continue reading S2FP006
Add to cart -
S2FP101
$460.00Safety Switch with Lock Function Features at a Glance Performance Level: Cat. 4 PL e Power to unlock principle Locking force of 1150 N Electrical Data Sensor Type Locking unit Supply Voltage 20.4 … 26.4 V DC Response Time ≤ 100 ms Risk time ≤ 200 ms Temperature Range 0 … 60 °C Storage temperature -10 … 90 °C Safety Output OSSD Number of safety outputs (OSSDs) 2 PNP Safety … Continue reading S2FP101
Add to cart -
S2FP102
$460.00Safety Switch with Lock Function Features at a Glance Power to lock principle Performance Level: Cat. 4 PL e Locking force of 1150 N Electrical Data Sensor Type Locking unit Supply Voltage 20.4 … 26.4 V DC Response Time ≤ 100 ms Risk time ≤ 200 ms Temperature Range 0 … 60 °C Storage temperature -10 … 90 °C Safety Output OSSD Number of safety outputs (OSSDs) 2 PNP Safety … Continue reading S2FP102
Add to cart -
S2FP103
$476.00Safety Switch with Lock Function Features at a Glance Performance Level: Cat. 4 PL e Power to unlock principle Locking force of 1150 N Electrical Data Sensor Type Locking unit Supply Voltage 20.4 … 26.4 V DC Response Time ≤ 100 ms Risk time ≤ 200 ms Temperature Range 0 … 60 °C Storage temperature -10 … 90 °C Safety Output OSSD Number of safety outputs (OSSDs) 2 PNP Safety … Continue reading S2FP103
Add to cart -
S2FP104
$476.00Safety Switch with Lock Function Features at a Glance Power to lock principle Performance Level: Cat. 4 PL e Locking force of 1150 N Electrical Data Sensor Type Locking unit Supply Voltage 20.4 … 26.4 V DC Response Time ≤ 100 ms Risk time ≤ 200 ms Temperature Range 0 … 60 °C Storage temperature -10 … 90 °C Safety Output OSSD Number of safety outputs (OSSDs) 2 PNP Safety … Continue reading S2FP104
Add to cart -
S2FP200
$66.60Guard Locking Device Features at a Glance 1000 N locking force RFID encoding Electrical Data Sensor Type Actuator Temperature Range 0 … 60 °C Storage temperature -10 … 90 °C Mechanical Data Housing Material Plastic Degree of Protection IP65/IP67/IP69 Safety-relevant Data Operating principle RFID
Add to cart -
SC20I01S
$29.10Emergency Stop Switch Features at a Glance Narrow installation width Integrated defect protection Electrical Data Temperature Range -30 … 85 °C Storage temperature -50 … 85 °C Protective Insulation, Rated Voltage 250 V Mechanical Data Contact material AgNi Service Life (Switching Cycle) 20000 Bounce time < 10 ms Connection Screw-type connection Clampable Wire Cross-Section 2.5 mm²
Add to cart -
SC20J01S
$47.61Emergency Stop Switch Features at a Glance Narrow installation width Including illumination module Integrated defect protection Electrical Data Temperature Range -30 … 70 °C Storage temperature -50 … 85 °C Protective Insulation, Rated Voltage 250 V Mechanical Data Contact material AgNi Service Life (Switching Cycle) 20000 Bounce time < 10 ms Connection Screw-type connection Clampable Wire Cross-Section 2.5 mm²
Add to cart -
SC21I01S
$36.34Emergency Stop Switch Features at a Glance Narrow installation width Integrated defect protection Electrical Data Temperature Range -30 … 85 °C Storage temperature -50 … 85 °C Protective Insulation, Rated Voltage 250 V Mechanical Data Contact material AgNi Service Life (Switching Cycle) 20000 Bounce time < 10 ms Connection Screw-type connection Clampable Wire Cross-Section 2.5 mm²
Add to cart -
SC21J01S
$54.97Emergency Stop Switch Features at a Glance Including illumination module Integrated defect protection Electrical Data Temperature Range -30 … 70 °C Storage temperature -50 … 85 °C Protective Insulation, Rated Voltage 250 V Mechanical Data Contact material AgNi Service Life (Switching Cycle) 20000 Bounce time < 10 ms Connection Screw-type connection Clampable Wire Cross-Section 2.5 mm²
Add to cart -
SD4ICA01
$77.80Guard Locking Device Features at a Glance 500 N locking force (monitored) Easy to clean Electrical Data Sensor Type Actuator Temperature Range -25 … 55 °C Storage temperature -25 … 85 °C Mechanical Data Housing Material Plastic Degree of Protection IP67
Add to cart -
SD4ICS01SE89
$463.00Guard Locking Device Features at a Glance 500 N locking force (monitored) Easy to clean Extensive diagnosis Electrical Data Sensor Type Locking unit Supply Voltage 20.4 … 26.4 V DC Response Time < 150 ms Risk time < 150 ms Temperature Range -25 … 55 °C Storage temperature -25 … 85 °C Safety Output OSSD Number of safety outputs (OSSDs) 2 PNP Safety Output/Switching Current < 250 mA Number of Signal … Continue reading SD4ICS01SE89
Add to cart -
SD4ICS02SE89
$484.00Guard Locking Device Features at a Glance 500 N locking force (monitored) Easy to clean Extensive diagnosis Integrated locking Electrical Data Sensor Type Locking unit Supply Voltage 20.4 … 26.4 V DC Response Time < 150 ms Risk time < 150 ms Temperature Range -25 … 55 °C Storage temperature -25 … 85 °C Safety Output OSSD Number of safety outputs (OSSDs) 2 PNP Safety Output/Switching Current < 250 mA Number … Continue reading SD4ICS02SE89
Add to cart -
SD4ICS03SE89
$463.00Guard Locking Device Features at a Glance 500 N locking force (monitored) Easy to clean Extensive diagnosis Adjustable locking force Electrical Data Sensor Type Locking unit Supply Voltage 20.4 … 26.4 V DC Response Time < 150 ms Risk time < 150 ms Temperature Range -25 … 55 °C Storage temperature -25 … 85 °C Safety Output OSSD Number of safety outputs (OSSDs) 2 PNP Safety Output/Switching Current < 250 mA … Continue reading SD4ICS03SE89
Add to cart -
SD4ICS04SE89
$484.00Guard Locking Device Features at a Glance 500 N locking force (monitored) Easy to clean Extensive diagnosis Adjustable locking force Electrical Data Sensor Type Locking unit Supply Voltage 20.4 … 26.4 V DC Response Time < 150 ms Risk time < 150 ms Temperature Range -25 … 55 °C Storage temperature -25 … 85 °C Safety Output OSSD Number of safety outputs (OSSDs) 2 PNP Safety Output/Switching Current < 250 mA … Continue reading SD4ICS04SE89
Add to cart -
SD4ICS13SE89
$522.00Safety Switch with Lock Function Features at a Glance Easy to clean Extensive diagnosis 500 N locking force Adjustable locking force Electrical Data Sensor Type Locking unit Supply Voltage 20.4 … 26.4 V DC Response Time < 150 ms Risk time < 150 ms Temperature Range -25 … 55 °C Storage temperature -25 … 85 °C Safety Output OSSD Number of safety outputs (OSSDs) 2 PNP Safety Output/Switching Current … Continue reading SD4ICS13SE89
Add to cart
