MLE

The MINI LABEL EYE® is a special purpose gap or slot sensor optimized to sense adhesive labels adhering to a roll of backing paper.

GET THE OPTICAL ADVANTAGE!
The MLE’s specially designed optics greatly reduces sensitivity to web flutter. The high intensity IR LED penetrates thicker backing material and reduces temperature drift.

The astonishing 35 microseconds allows the MLE to keep up with even the fastest high speed rewinders.

This miniature sensor can fit into many small spaces at only 10mm wide. The fork design with intergrated bracket keeps mounting easy.

The oversize Status Indicator can be seen even from a distance away. Displays GREEN when the sensor is powered on, and displays RED when the output is ON.

Specifications

SUPPLY VOLTAGE:
4.75 to 30Vdc
Polarity ProtectedCURRENT REQUIREMENTS:
18 milliamps (exclusive of load)OUTPUT TRANSISTORS:
NPN or PNP (dependent on model)
Outputs sink or source up to 120 milliamps (current limit)
All outputs are continuously short circuit protected.REMOTE SET INPUT
Active high (PNP) or active low (NPN),
depending on model (1ma)
Transient spike protectedRESPONSE TIME:
35 microsecondsLED LIGHT SOURCE:
High Intensity IR LEDAMBIENT TEMPERATURE:
-40ºC to 70ºC (-40ºF to 158ºF)PUSH BUTTON CONTROL:
One push AUTOSET
LT/DK inverts output
Adjusts threshold (+ or -)
HYSTERESIS
5%LIGHT IMMUNITY
Responds to sensor’s pulsed modulated light source, resulting in high immunity to most ambient lightINDICATORS
GREEN or RED to indicate power is on.
AMBER during AUTOSET
Red when sensor’s output transistors are ON, and GREEN when they are off.
NOTE: Flashes RED when a short circuit condition exists.CONNECTIONS:
M8, 4-pin Male
Attached cable: 4-wire 6ft (1.8m)HOUSING CONSTRUCTION:
Top lid: polycarbonate
Output window: ABS
Case: 50% glass filled nlyon
Buttons: silicon rubberRATINGS AND CERTIFICATIONS:
IP65
CE
UL Pending

Features

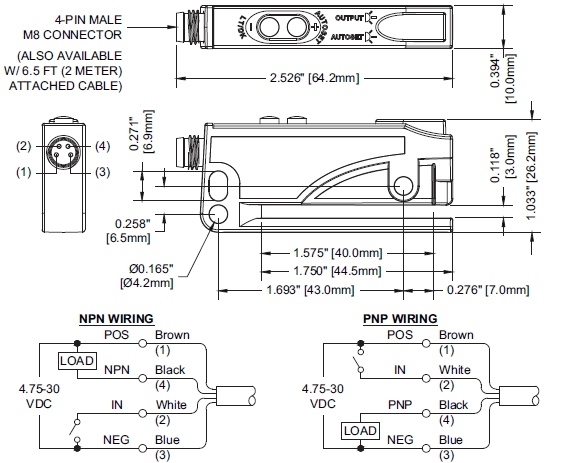

Dimensions
