Ultrasonic sensors are suitable for detecting transparent, dark, glossy, reflective or porous surfaces. They can detect objects or liquids despite the presence of dirt, dust, mist or extraneous light. The measured values are determined by transmitting and receiving ultrasonic waves which are output as voltage or via IO-Link.
Showing all 15 results
-

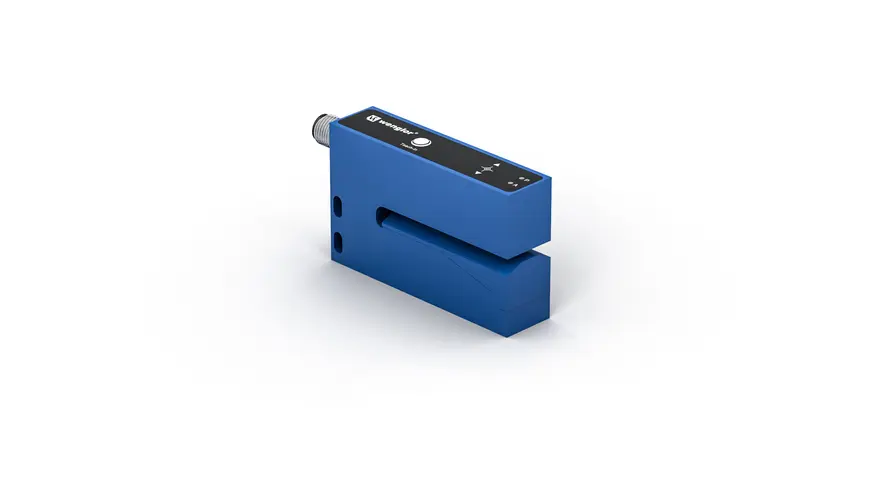

Wenglor Fork Sensors for Label Detection (1)
-

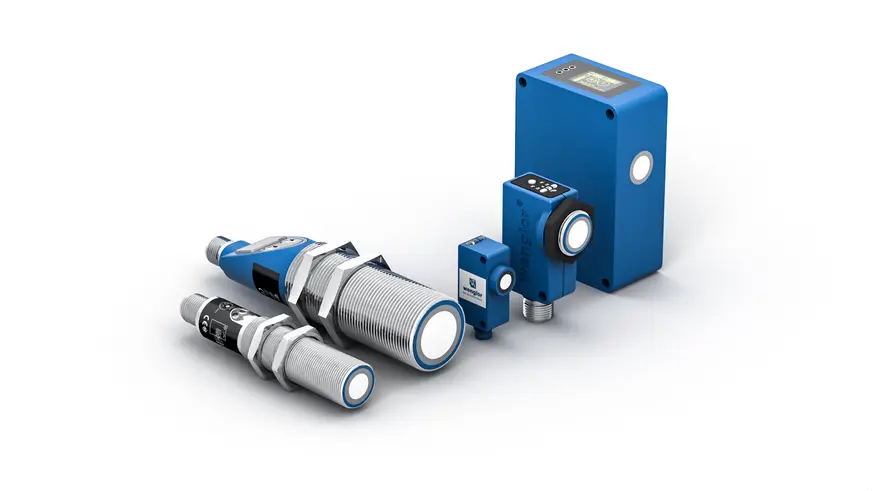

Wenglor Ultrasonic Distance Sensors (14)
-
U1HJ001
$689.00Fork Sensor Features at a Glance Easy setup via teach-in Detection of dark, transparent or printed labels Flexible output settings (PNP/NPN, NC/NO) High switching frequency Ultrasonic Data Fork Width 3 mm Smallest Detectable Gap 2 mm Ultrasonic Frequency 300 kHz Electrical Data Supply Voltage 12 … 30 V DC Current Consumption (Ub = 24 V) < 45 mA Switching Frequency 400 Hz Response Time 1.25 ms … Continue reading U1HJ001
Add to cart -
U1KT001
$318.00Distance Sensor Features at a Glance 2 mutually independent switching outputs Miniature design Ready for Industrie 4.0 with IO-Link version 1.1 Reflex and through-beam operation mode are possible Ultrasonic Data Working range, reflex sensor 30 … 400 mm Working range, through-beam sensor 1 … 800 mm Setting Range 30 … 400 mm Reproducibility maximum 4 mm Linearity Deviation 4 mm Resolution 0.5 mm Ultrasonic Frequency 325 kHz Opening Angle < 12 ° … Continue reading U1KT001
Add to cart -
U1KT002
$318.00Distance Sensor Features at a Glance 2 mutually independent switching outputs Miniature design Ready for Industrie 4.0 with IO-Link version 1.1 Reflex and through-beam operation mode are possible Ultrasonic Data Working range, reflex sensor 30 … 400 mm Working range, through-beam sensor 1 … 800 mm Setting Range 30 … 400 mm Reproducibility maximum 4 mm Linearity Deviation 4 mm Resolution 0.5 mm Ultrasonic Frequency 325 kHz Opening Angle < 12 ° … Continue reading U1KT002
Add to cart -
U1KT003
$361.00Distance Sensor Features at a Glance 2 mutually independent switching outputs Miniature design Ready for Industrie 4.0 with IO-Link version 1.1 Reflex and through-beam operation mode are possible Ultrasonic Data Working range, reflex sensor 30 … 400 mm Working range, through-beam sensor 1 … 800 mm Setting Range 30 … 400 mm Reproducibility maximum 4 mm Linearity Deviation 4 mm Resolution 0.5 mm Ultrasonic Frequency 325 kHz Opening Angle < 12 ° … Continue reading U1KT003
Add to cart -
U1KT004
$318.00Features at a Glance Miniature design Ready for Industrie 4.0 with IO-Link version 1.1 Reflex and through-beam operation mode are possible Antivalent switching output Ultrasonic Data Working range, reflex sensor 30 … 400 mm Working range, through-beam sensor 1 … 800 mm Setting Range 30 … 400 mm Reproducibility maximum 4 mm Linearity Deviation 4 mm Resolution 0.5 mm Ultrasonic Frequency 325 kHz Opening Angle < 12 ° Service Life (T = +25 … Continue reading U1KT004
Add to cart -
U1RT002
$338.00Distance Sensor Features at a Glance 2 mutually independent switching outputs Wireless settings via NFC IO-Link version 1.1 Reflex and through-beam operation mode are possible Temperature range: –30…60 °C Ultrasonic Data Working range, reflex sensor 100 … 1,200 mm Working range, through-beam sensor 1 … 2,000 mm Reproducibility maximum 5 mm Linearity Deviation 2 mm Resolution 1 mm Ultrasonic Frequency 240 kHz Opening Angle < 12 ° Service Life (T = … Continue reading U1RT002
Add to cart -
U1RT003
$338.00Distance Sensor Features at a Glance 2 mutually independent switching outputs IO-Link version 1.1 Reflex and through-beam operation mode are possible Temperature range: –30…60 °C Wireless settings via NFC Ultrasonic Data Working range, reflex sensor 100 … 1,200 mm Working range, through-beam sensor 1 … 2,000 mm Reproducibility maximum 5 mm Linearity Deviation 2 mm Resolution 1 mm Ultrasonic Frequency 240 kHz Opening Angle < 12 ° Service Life (T = … Continue reading U1RT003
Add to cart -
U1RT004
$324.00Distance Sensor Features at a Glance IO-Link version 1.1 Wide sonic cone at close range External teach-in (tamper protection) Temperature range: –30…60 °C Ultrasonic Data Working range, reflex sensor 80 … 400 mm Reproducibility maximum 1 mm Linearity Deviation 3 mm Resolution 0.5 mm Ultrasonic Frequency 300 kHz Opening Angle < 14 ° Service Life (T = +25 °C) 100,000 h Switching Hysteresis 2 mm
Add to cart -
UMD123U035
$333.00Distance Sensor Features at a Glance Stainless steel housing Digital and analog output Temperature drift eliminable Synchronous mode Ultrasonic Data Working Range 100 … 1,200 mm Measuring Range 1,100 mm Reproducibility maximum 2 mm Linearity Deviation 7 mm Resolution 0.2 mm Ultrasonic Frequency 240 kHz Opening Angle < 12 ° Service Life (T = +25 °C) 100,000 h Switching Hysteresis 10 mm
Add to cart -
UMD402U035
$321.00Distance Sensor Features at a Glance Stainless steel housing Synchronous mode Digital and analog output Temperature drift eliminable Ultrasonic Data Working Range 50 … 400 mm Measuring Range 350 mm Reproducibility maximum 1 mm Linearity Deviation 5 mm Resolution 0.1 mm Ultrasonic Frequency 300 kHz Opening Angle < 12 ° Service Life (T = +25 °C) 100,000 h Switching Hysteresis 2 mm
Add to cart -
UMF303U035
$580.00Distance Sensor Features at a Glance Digital and analog output Stainless steel housing Temperature drift eliminable Synchronous and multiplex mode Ultrasonic Data Working Range 200 … 3,000 mm Measuring Range 2,800 mm Reproducibility maximum 4 mm Linearity Deviation 4 mm Resolution 0.3 mm Ultrasonic Frequency 120 kHz Opening Angle < 14 ° Service Life (T = +25 °C) 100,000 h Switching Hysteresis 30 mm
Add to cart -
UMF402U035
$561.00Distance Sensor Features at a Glance Stainless steel housing Digital and analog output Synchronous and multiplex mode Temperature drift eliminable Ultrasonic Data Working Range 50 … 400 mm Measuring Range 350 mm Reproducibility maximum 1 mm Linearity Deviation 3 mm Resolution 0.1 mm Ultrasonic Frequency 300 kHz Opening Angle < 12 ° Service Life (T = +25 °C) 100,000 h Switching Hysteresis 2 mm
Add to cart -
UMS123U035
$785.00Distance Sensor Features at a Glance Digital and analog output Synchronous and multiplex mode Temperature drift eliminable Menu-driven settings Ultrasonic Data Working Range 100 … 1,200 mm Measuring Range 1,100 mm Reproducibility maximum 1 mm Linearity Deviation 4 mm Resolution 0.2 mm Ultrasonic Frequency 225 kHz Opening Angle < 12 ° Service Life (T = +25 °C) 100,000 h Switching Hysteresis 5 mm
Add to cart -
UMS303U035
$801.00Distance Sensor Features at a Glance Digital and analog output Synchronous and multiplex mode Temperature drift eliminable Menu-driven settings Ultrasonic Data Working Range 200 … 3,000 mm Measuring Range 2,800 mm Reproducibility maximum 2 mm Linearity Deviation 4 mm Resolution 0.3 mm Ultrasonic Frequency 120 kHz Opening Angle < 14 ° Service Life (T = +25 °C) 100,000 h Switching Hysteresis 15 mm
Add to cart -
UMS603U035
$828.00Distance Sensor Features at a Glance Digital and analog output Synchronous and multiplex mode Temperature drift eliminable Menu-driven settings Ultrasonic Data Working Range 300 … 6,000 mm Measuring Range 5,700 mm Reproducibility maximum 5 mm Linearity Deviation 20 mm Resolution 1 mm Ultrasonic Frequency 75 kHz Opening Angle < 14 ° Service Life (T = +25 °C) 100,000 h Switching Hysteresis 30 mm
Add to cart
