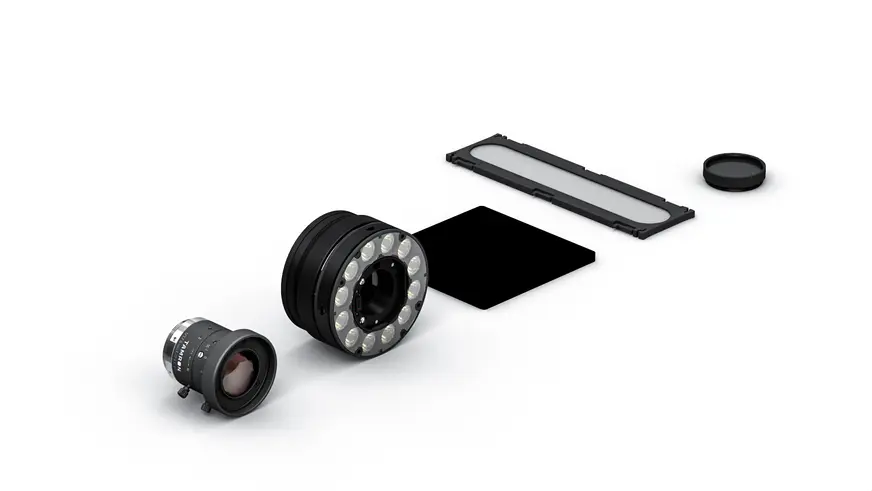

Wenglor Optics, Filters, Deflectors and Focusers

Path-Folding Mirror Features at a Glance Deflection about 90° Mechanical Data Mounting type, device-side Fixing Holes General Data Packaging unit 1 Piece

Lens for Plastic Fiber-Optic Cable Features at a Glance Smallest recognizable part: 100 µm Optical Data Range with K15 10 … 30 mm Range with K16 2,800 mm Light Spot Diameter 0.5 … 2 mm Smallest Recognizable Part 100 µm Mechanical Data Material Aluminum, anodised General Data Packaging unit 1 Piece

Lens Features at a Glance Increase in the reception area to Ø 30 mm Mechanical Data Material Aluminum, anodised General Data Packaging unit 1 Piece

Path-Folding Mirror Features at a Glance Deflection about 90° Mechanical Data Material Aluminum, anodised General Data Packaging unit 1 Piece

Lens Features at a Glance Adjustable aperture Adjustable focus Fixed focal length lens with C mount threaded connection Optical Data Focal distance 35 mm Maximum sensor size 2/3” Minimum pixel size 6.2 µm Mechanical Data Lens thread C-Mount Aperture arrestable adjustable Setting range aperture F 1,6…22 Minimum object distance 250 mm Filter Screw Size M25,5 × 0,5 mm Temperature Range -10 … 50 °C General Data […]

Lens Features at a Glance Adjustable aperture Adjustable focus Fixed focal length lens with C mount threaded connection Optical Data Focal distance 50 mm Maximum sensor size 2/3” Minimum pixel size 6.2 µm Mechanical Data Lens thread C-Mount Aperture arrestable adjustable Setting range aperture F 2,3…22 Minimum object distance 500 mm Filter Screw Size M25,5 × 0,5 mm Temperature Range -10 … 50 °C General Data […]

Baffle Plate Features at a Glance For M18 × 1 Deflection about 90° Mechanical Data Material Stainless Steel Deflection about 90° yes General Data Packaging unit 1 Piece

Baffle Plate Features at a Glance For M18 × 1 Focussing the ultrasonic cone Deflection about 90° Mechanical Data Material Stainless Steel Deflection about 90° yes Focusing the sonic cone yes General Data Packaging unit 1 Piece

Features at a Glance Narrow sonic cone for precise and contactless measurement Width of soundpipe and U1KT sensor is still 12 mm Double-sided adhesive tape included for easy installation For sensor U1KT Ultrasonic Data Working range, reflex sensor 35 … 240 mm Working range, through-beam sensor 1 … 600 mm Reproducibility maximum 4 mm Linearity Deviation 4 mm Electrical Data Temperature Range – 30 … 60 °C Mechanical Data Housing Material […]

Path-Folding Mirror Features at a Glance Reflector area: 80 mm Mechanical Data Housing Material Aluminum Disc Material Mirrored glass Mirror Length (SL) 80 mm General Data Scope of delivery BEF-SET-33 Packaging unit 1 Piece

Path-Folding Mirror Features at a Glance Reflector area: 1900 mm Mechanical Data Housing Material Aluminum Disc Material Mirrored glass Mirror Length (SL) 1,900 mm General Data Scope of delivery BEF-SET-33 Packaging unit 1 Piece
