Wenglor Connection & Network Technology
Shop by Brand
Connection, network and fieldbus components as well as evaluation technology enable wenglor products to be integrated into automation processes, as well as communication of products and the evaluation of results in real time.
Showing 1–24 of 198 results
-

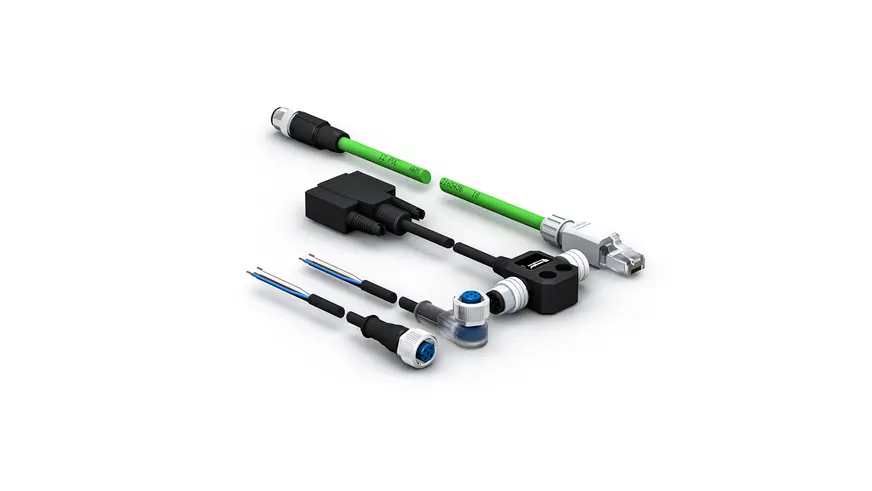

Wenglor Connection Equipment (182)
-
Wenglor Evaluation Technology (1)
-

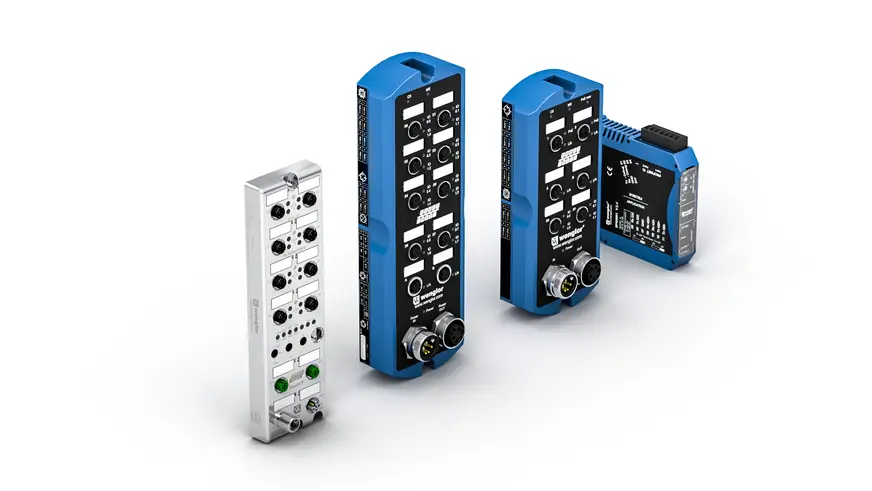

Wenglor Network and Fieldbus Components (15)
-
AW02
$1,026.95Analog Evaluation Unit Features at a Glance High-speed evaluation of two analog voltages (GOOD/BAD selection) Easy operation via menu-driven LCD display Measurement of thickness, difference, height, unbalance and volume flow Two independent outputs Electrical Data Supply Voltage 18 … 30 V DC Current Consumption (Ub = 24 V) 100 mA Measuring Rate 5,000 /s Temperature Range -10 … 50 °C Number of Switching Outputs … Continue reading AW02
Add to cart -
EFBL001
$828.00IO-Link Master Features at a Glance IO-Link version 1.1 Compatible with IO-Link Device Tool DNNF009 Electrical Data Supply Voltage 24 V Temperature Range 0 … 45 °C Number of IO-link ports 1 Interface USB Communication Mode IO-Link SIO, COM1, COM2, COM3 IO-Link Version 1.0, 1.1 IO-link port Class A Protection Class III
Add to cart -
EFBL003
$464.00IO-Link Master Features at a Glance Compatible with wTeach2 IO-Link version 1.1 Compatible with IO-Link Device Tool DNNF019 Electrical Data Supply Voltage 24 V Temperature Range 0 … 55 °C Number of IO-link ports 1 Interface USB Communication Mode IO-Link COM1, COM2, COM3 IO-Link Version 1.0, 1.1 IO-link port Class A Protection Class III
Add to cart -
EHSS001
$616.00Switch Features at a Glance Rugged aluminium housing 5 Ethernet ports Electrical Data Supply Voltage 12 … 48 V Current Consumption (Ub = 24 V) 0.16 A Temperature Range -10 … 60 °C Overload Protection yes Reverse Polarity Protection yes Number of Gigabit Ethernet RJ45 5 Baud Rate 10/100/1000 Mbit/s Transmission Mode Full/Half Duplex Switch Mode Store & Forward Auto-Crossover yes Auto-Negotiating yes Auto-Polarity yes
Add to cart -
EP0L001
$793.00IO-Link Master Features at a Glance 8 IO-Link ports Robust zinc diecasting housing Protection mode IP69K Electrical Data Supply Voltage 18 … 30 V DC Power consumption of device max. 0.18 A Max. Switching Current Switching Outputs 0.5 A Max. Switching Current Switching Outputs IO-Link 0.5 A max. total current of the digital I/O ports 14 A Sensor Supply Voltage (Pin 1) 500 mA Switching Output Voltage Drop < 2.5 V Temperature Range -20 … 70 °C … Continue reading EP0L001
Add to cart -
EPGG001
$819.95Fieldbus Gateway Features at a Glance Easy handling Gateway from RS-232/422/485 interfaces to PROFINET With two Industrial Ethernet ports Electrical Data Supply Voltage 10 … 32 V DC Current Consumption Gateway (Ub = 24 V) < 100 mA Temperature Range 0 … 55 °C Short Circuit Protection yes Reverse Polarity Protection yes Overload Protection yes Interface RS-232 Baud Rate RS-232 < 115,200 Bd Baud Rate PROFINET < 100 MBd Number … Continue reading EPGG001
Add to cart -
FISZ-RS23207
$241.50Interface Cable Features at a Glance RS-232 interface Electrical Data Interface RS-232 Mechanical Data Connection 1 Socket, straight Connection mode 1 SUB D, 9-pin Connection 2 Plug, straight Connection mode 2 Mini-DIN, 8-pin Cable Length 2 m Outer diameter (d) 4.6 mm Wire cross-section 0.14 mm² Temperature Range -25 … 70 °C Cable Jacket Material PUR Material Wire Insulation PVC
Add to cart -
OPT70N
$67.28T-Plug for Signal Extraction Features at a Glance With fixing holes Electrical Data Signal Extraction yes Mechanical Data Connection 1 Plug, straight Connection mode 1 M12 × 1, 4-pin Connection 2 Socket, angled Plug, angled Connection mode 2 M12 × 1, 4-pin Torque M12: 0,8 Nm Degree of Protection IP68 Temperature Range -25 … 90 °C Material Sleeve … Continue reading OPT70N
Add to cart -
OPT70P
$67.28T-Plug for Signal Extraction Features at a Glance With fixing holes Electrical Data Signal Extraction yes Logic Interruption yes Mechanical Data Connection 1 Plug, straight Connection mode 1 M12 × 1, 4-pin Connection 2 Socket, angled Plug, angled Connection mode 2 M12 × 1, 4-pin Torque M12: 0,8 Nm Degree of Protection IP68 Temperature Range … Continue reading OPT70P
Add to cart -
OPT70S
$67.28T-Plug for Signal Extraction Features at a Glance With fixing holes Electrical Data Signal Extraction yes Logic Interruption yes Mechanical Data Connection 1 Plug, straight Connection mode 1 M12 × 1, 4-pin Connection 2 Socket, angled Plug, angled Connection mode 2 M12 × 1, 4-pin Torque M12: 0,8 Nm Degree of Protection IP68 Temperature Range … Continue reading OPT70S
Add to cart -
S03G
$23.34Connector Plug Features at a Glance Plug M12 × 1, straight Mechanical Data Connection 1 Plug, straight Connection mode 1 M12 × 1, 4-pin Torque M12: 0,6 Nm Outer diameter (d) 4 … 8 mm Wire cross-section ≤ 0.75 mm² Assembling Screw Terminal Technology Degree of Protection IP67 Temperature Range -25 … 90 °C Material Sleeve Nut CuZn, nickel-plated
Add to cart -
S13W-2M
$25.99Connection Line Features at a Glance PUR, angled Electrical Data Supply Voltage ≤ 125 V DC/AC Mechanical Data Connection 1 Socket, angled Connection mode 1 M5 × 0,5; 3-pin Connection 2 stripped Torque M5: 0,3 Nm Cable Length 2 m Outer diameter (d) 3 mm Wire cross-section 0.14 mm² Degree of Protection IP67 Temperature range (fixed installation) -15 … 80 °C Temperature range (moving application) … Continue reading S13W-2M
Add to cart -
S23-10MPUR
$39.56Connection Line Features at a Glance Halogen free, drag chain suitability PUR, straight Electrical Data Supply Voltage ≤ 250 V DC/AC Mechanical Data Connection 1 Socket, straight Connection mode 1 M12 × 1, 4-pin Connection 2 stripped Torque M12: 0,6 Nm Cable Length 10 m Outer diameter (d) 4.7 mm Wire cross-section 0.34 mm² Degree of Protection IP67 Temperature range (fixed … Continue reading S23-10MPUR
Add to cart -
S23-2M
$21.16Connection Line Features at a Glance Straight Electrical Data Supply Voltage ≤ 250 V AC/DC Mechanical Data Connection 1 Socket, straight Connection mode 1 M12 × 1, 4-pin Connection 2 stripped Torque M12: 0,6 Nm Cable Length 2 m Outer diameter (d) 5 mm Wire cross-section 0.34 mm² Degree of Protection IP67 Temperature range (fixed installation) -30 … 80 °C Temperature range (moving application) -5 … 80 °C … Continue reading S23-2M
Add to cart -
S23-2MPUR
$24.04Connection Line Features at a Glance Halogen free, drag chain suitability PUR, straight Electrical Data Supply Voltage ≤ 250 V AC/DC Mechanical Data Connection 1 Socket, straight Connection mode 1 M12 × 1, 4-pin Connection 2 stripped Torque M12: 0,6 Nm Cable Length 2 m Outer diameter (d) 4.7 mm Wire cross-section 0.34 mm² Degree of Protection IP67 Temperature range (fixed … Continue reading S23-2MPUR
Add to cart -
S23-5MPUR
$30.02Connection Line Features at a Glance Halogen free, drag chain suitability PUR, straight Electrical Data Supply Voltage ≤ 250 V AC/DC Mechanical Data Connection 1 Socket, straight Connection mode 1 M12 × 1, 4-pin Connection 2 stripped Torque M12: 0,6 Nm Cable Length 5 m Outer diameter (d) 4.7 mm Wire cross-section 0.34 mm² Degree of Protection IP67 Temperature range (fixed … Continue reading S23-5MPUR
Add to cart -
S232W3
$98.10Interface Cable Features at a Glance Socket M12 × 1, angled Socket SUB D, 9-pin Screened Plug M12 × 1, angled Mechanical Data Connection 1 Socket, straight Connection mode 1 SUB D, 9-pin Connection 2 Socket, angled Plug, angled Connection mode 2 M12 × 1, 8-pin Torque M12: 0,6 Nm Cable Length 150 cm Outer diameter … Continue reading S232W3
Add to cart -
S27-10M
$37.95Connection Line Features at a Glance With LED, angled Electrical Data Supply Voltage ≤ 24 V DC Mechanical Data Connection 1 Socket, angled Connection mode 1 M12 × 1, 4-pin Connection 2 stripped Torque M12: 0,6 Nm Cable Length 10 m Outer diameter (d) 5 mm Wire cross-section 0.34 mm² Display LED Degree of Protection IP67 Temperature range (fixed installation) -30 … 80 °C … Continue reading S27-10M
Add to cart -
S27-2M
$21.80Connection Line Features at a Glance With LED, angled Electrical Data Supply Voltage ≤ 24 V DC Mechanical Data Connection 1 Socket, angled Connection mode 1 M12 × 1, 4-pin Connection 2 stripped Torque M12: 0,6 Nm Cable Length 2 m Outer diameter (d) 5 mm Wire cross-section 0.34 mm² Display LED Degree of Protection IP67 Temperature range (fixed installation) -30 … 80 °C … Continue reading S27-2M
Add to cart -
S27-2MPUR
$29.90Connection Line Features at a Glance Halogen free, drag chain suitability PUR, with LED, angled Electrical Data Supply Voltage ≤ 24 V DC Mechanical Data Connection 1 Socket, angled Connection mode 1 M12 × 1, 4-pin Connection 2 stripped Torque M12: 0,6 Nm Cable Length 2 m Outer diameter (d) 4.7 mm Wire cross-section 0.34 mm² Display LED Degree of … Continue reading S27-2MPUR
Add to cart -
S27-5M
$30.94Connection Line Features at a Glance With LED, angled Electrical Data Supply Voltage ≤ 24 V DC Mechanical Data Connection 1 Socket, angled Connection mode 1 M12 × 1, 4-pin Connection 2 stripped Torque M12: 0,6 Nm Cable Length 5 m Outer diameter (d) 5 mm Wire cross-section 0.34 mm² Display LED Degree of Protection IP67 Temperature range (fixed installation) -30 … 80 °C … Continue reading S27-5M
Add to cart -
S29-10M
$32.09Connection Line Features at a Glance Angled Electrical Data Supply Voltage ≤ 250 V AC/DC Mechanical Data Connection 1 Socket, angled Connection mode 1 M12 × 1, 4-pin Connection 2 stripped Torque M12: 0,6 Nm Cable Length 10 m Outer diameter (d) 5 mm Wire cross-section 0.34 mm² Degree of Protection IP67 Temperature range (fixed installation) -30 … 80 °C Temperature range (moving application) -5 … 80 °C … Continue reading S29-10M
Add to cart -
S29-2M
$21.16Connection Line Features at a Glance Angled Electrical Data Supply Voltage ≤ 250 V AC/DC Mechanical Data Connection 1 Socket, angled Connection mode 1 M12 × 1, 4-pin Connection 2 stripped Torque M12: 0,6 Nm Cable Length 2 m Outer diameter (d) 5 mm Wire cross-section 0.34 mm² Degree of Protection IP67 Temperature range (fixed installation) -30 … 80 °C Temperature range (moving application) -5 … 80 °C … Continue reading S29-2M
Add to cart -
S29-5M
$25.07Connection Line Features at a Glance Angled Electrical Data Supply Voltage ≤ 250 V AC/DC Mechanical Data Connection 1 Socket, angled Connection mode 1 M12 × 1, 4-pin Connection 2 stripped Torque M12: 0,6 Nm Cable Length 5 m Outer diameter (d) 5 mm Wire cross-section 0.34 mm² Degree of Protection IP67 Temperature range (fixed installation) -30 … 80 °C Temperature range (moving application) -5 … 80 °C … Continue reading S29-5M
Add to cart
