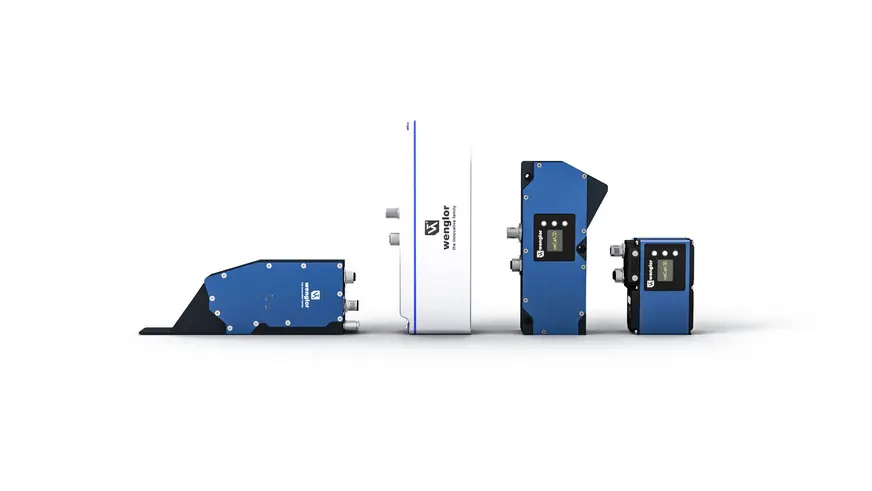

Sensors of this type measure profiles of objects such as weld seams or glue beads and check roundness or gaps using laser triangulation. Red or blue laser light, open interfaces and various performance classes are available.
Showing 1–24 of 70 results
-
M2SL225
$17,788.20Features at a Glance Precise measuring range resolution X (> 1200 measuring points) Ecolab Stainless steel housing 1.4404 IP67 / IP69K Optical Data Working range Z 280 … 1,280 mm Measuring range Z 1,000 mm Measuring range X 200 … 850 mm Linearity Deviation 500 µm Resolution Z 40 … 570 µm Resolution X 190 … 760 µm Light Source Laser (red) Wavelength 660 nm Laser Class (EN 60825-1) 2M
Add to cart -
M2SL226
$17,788.20Features at a Glance Precise measuring range resolution X (> 1200 measuring points) Ecolab Stainless steel housing 1.4404 IP67 / IP69K Optical Data Working range Z 300 … 1,500 mm Measuring range Z 1,200 mm Measuring range X 250 … 1,350 mm Linearity Deviation 600 µm Resolution Z 60 … 990 µm Resolution X 270 … 1,170 µm Light Source Laser (red) Wavelength 660 nm Laser Class (EN 60825-1) 2M
Add to cart -
M2SL235
$19,019.85Features at a Glance Precise measuring range resolution X (> 1200 measuring points) Ecolab Stainless steel housing 1.4404 IP67 / IP69K Optical Data Working range Z 280 … 1,280 mm Measuring range Z 1,000 mm Measuring range X 200 … 850 mm Linearity Deviation 500 µm Resolution Z 40 … 570 µm Resolution X 190 … 760 µm Light Source Laser (blue) Wavelength 405 nm Laser Class (EN 60825-1) 2M
Add to cart -
M2SL236
$19,019.85Features at a Glance Precise measuring range resolution X (> 1200 measuring points) Ecolab Stainless steel housing 1.4404 IP67 / IP69K Optical Data Working range Z 300 … 1,500 mm Measuring range Z 1,200 mm Measuring range X 250 … 1,350 mm Linearity Deviation 600 µm Resolution Z 60 … 990 µm Resolution X 270 … 1,170 µm Light Source Laser (blue) Wavelength 405 nm Laser Class (EN 60825-1) 2M
Add to cart -
MLSL121
$11,332.102D/3D Profile Sensor Features at a Glance Up to 3.6 million measuring points per second Compact, lightweight design – even suitable for robot applications Precise measuring range resolution X (> 1200 measuring points) Optical Data Working range Z 72 … 108 mm Measuring range Z 36 mm Measuring range X 27 … 34 mm Linearity Deviation 18 µm Resolution Z 3.3 … 5.2 µm Resolution X 22 … 28 µm Light Source Laser (red) … Continue reading MLSL121
Add to cart -
MLSL122
$11,332.102D/3D Profile Sensor Features at a Glance Up to 3.6 million measuring points per second Compact, lightweight design – even suitable for robot applications Precise measuring range resolution X (> 1200 measuring points) Optical Data Working range Z 65 … 125 mm Measuring range Z 60 mm Measuring range X 40 … 58 mm Linearity Deviation 30 µm Resolution Z 4.8 … 9.6 µm Resolution X 33 … 47 µm Light Source Laser (red) … Continue reading MLSL122
Add to cart -
MLSL123
$11,332.102D/3D Profile Sensor Features at a Glance Up to 3.6 million measuring points per second Compact, lightweight design – even suitable for robot applications Precise measuring range resolution X (> 1200 measuring points) Optical Data Working range Z 90 … 280 mm Measuring range Z 190 mm Measuring range X 62 … 145 mm Linearity Deviation 95 µm Resolution Z 9.4 … 49 µm Resolution X 54 … 123 µm Light Source Laser (red) … Continue reading MLSL123
Add to cart -
MLSL124
$11,332.102D/3D Profile Sensor Features at a Glance Up to 3.6 million measuring points per second Compact, lightweight design – even suitable for robot applications Precise measuring range resolution X (> 1200 measuring points) Optical Data Working range Z 100 … 500 mm Measuring range Z 400 mm Measuring range X 70 … 280 mm Linearity Deviation 200 µm Resolution Z 12.4 … 160 µm Resolution X 68 … 246 µm Light Source Laser (red) … Continue reading MLSL124
Add to cart -
MLSL131
$12,563.752D/3D Profile Sensor Features at a Glance Up to 3.6 million measuring points per second Compact, lightweight design – even suitable for robot applications Precise measuring range resolution X (> 1200 measuring points) Blue light for applications on metal, organic or semi-transparent materials Optical Data Working range Z 72 … 108 mm Measuring range Z 36 mm Measuring range X 27 … 34 mm Linearity … Continue reading MLSL131
Add to cart -
MLSL132
$12,563.752D/3D Profile Sensor Features at a Glance Up to 3.6 million measuring points per second Compact, lightweight design – even suitable for robot applications Precise measuring range resolution X (> 1200 measuring points) Blue light for applications on metal, organic or semi-transparent materials Optical Data Working range Z 65 … 125 mm Measuring range Z 60 mm Measuring range X 40 … 58 mm Linearity … Continue reading MLSL132
Add to cart -
MLSL133
$12,563.752D/3D Profile Sensor Features at a Glance Up to 3.6 million measuring points per second Blue light for applications on metal, organic or semi-transparent materials Compact, lightweight design – even suitable for robot applications Precise measuring range resolution X (> 1200 measuring points) Optical Data Working range Z 90 … 280 mm Measuring range Z 190 mm Measuring range X 62 … 145 mm Linearity … Continue reading MLSL133
Add to cart -
MLSL134
$12,563.752D/3D Profile Sensor Features at a Glance Up to 3.6 million measuring points per second Compact, lightweight design – even suitable for robot applications Precise measuring range resolution X (> 1200 measuring points) Blue light for applications on metal, organic or semi-transparent materials Optical Data Working range Z 100 … 500 mm Measuring range Z 400 mm Measuring range X 70 … 280 mm Linearity … Continue reading MLSL134
Add to cart -
MLSL143
$17,322.452D/3D Profile Sensor Features at a Glance Up to 3.6 million measuring points per second Compact, lightweight design – even suitable for robot applications Precise measuring range resolution X (> 1200 measuring points) Optical Data Working range Z 90 … 280 mm Measuring range Z 190 mm Measuring range X 62 … 145 mm Linearity Deviation 95 µm Resolution Z 9.4 … 49 µm Resolution X 54 … 123 µm Light Source Laser (red) … Continue reading MLSL143
Add to cart -
MLSL144
$17,322.452D/3D Profile Sensor Features at a Glance Up to 3.6 million measuring points per second Compact, lightweight design – even suitable for robot applications Precise measuring range resolution X (> 1200 measuring points) Optical Data Working range Z 100 … 500 mm Measuring range Z 400 mm Measuring range X 70 … 280 mm Linearity Deviation 200 µm Resolution Z 12.4 … 160 µm Resolution X 68 … 246 µm Light Source Laser (red) … Continue reading MLSL144
Add to cart -
MLSL225
$14,327.852D/3D Profile Sensor Features at a Glance Up to 3.6 million measuring points per second Compact, lightweight design – even suitable for robot applications Precise measuring range resolution X (> 1200 measuring points) Optical Data Working range Z 280 … 1,280 mm Measuring range Z 1,000 mm Measuring range X 200 … 850 mm Linearity Deviation 500 µm Resolution Z 40 … 570 µm Resolution X 190 … 760 µm Light Source Laser (red) … Continue reading MLSL225
Add to cart -
MLSL226
$14,327.852D/3D Profile Sensor Features at a Glance Up to 3.6 million measuring points per second Compact, lightweight design – even suitable for robot applications Precise measuring range resolution X (> 1200 measuring points) Optical Data Working range Z 300 … 1,500 mm Measuring range Z 1,200 mm Measuring range X 250 … 1,350 mm Linearity Deviation 600 µm Resolution Z 60 … 990 µm Resolution X 270 … 1,170 µm Light Source Laser (red) … Continue reading MLSL226
Add to cart -
MLSL235
$15,559.502D/3D Profile Sensor Features at a Glance Up to 3.6 million measuring points per second Compact, lightweight design – even suitable for robot applications Precise measuring range resolution X (> 1200 measuring points) Blue light for applications on metal, organic or semi-transparent materials Optical Data Working range Z 280 … 1,280 mm Measuring range Z 1,000 mm Measuring range X 200 … 850 mm Linearity … Continue reading MLSL235
Add to cart -
MLSL236
$15,559.502D/3D Profile Sensor Features at a Glance Up to 3.6 million measuring points per second Compact, lightweight design – even suitable for robot applications Precise measuring range resolution X (> 1200 measuring points) Blue light for applications on metal, organic or semi-transparent materials Optical Data Working range Z 300 … 1,500 mm Measuring range Z 1,200 mm Measuring range X 250 … 1,350 mm Linearity … Continue reading MLSL236
Add to cart -
MLSL245
$15,030.502D/3D Profile Sensor Features at a Glance Up to 3.6 million measuring points per second Compact, lightweight design – even suitable for robot applications Precise measuring range resolution X (> 1200 measuring points) Optical Data Working range Z 280 … 1,280 mm Measuring range Z 1,000 mm Measuring range X 200 … 850 mm Linearity Deviation 500 µm Resolution Z 40 … 570 µm Resolution X 190 … 760 µm Light Source Laser (red) … Continue reading MLSL245
Add to cart -
MLSL246
$15,030.502D/3D Profile Sensor Features at a Glance Up to 3.6 million measuring points per second Compact, lightweight design – even suitable for robot applications Precise measuring range resolution X (> 1200 measuring points) Optical Data Working range Z 300 … 1,500 mm Measuring range Z 1,200 mm Measuring range X 250 … 1,350 mm Linearity Deviation 600 µm Resolution Z 60 … 990 µm Resolution X 270 … 1,170 µm Light Source Laser (red) … Continue reading MLSL246
Add to cart -
MLSL275
$16,969.402D/3D Profile Sensor Features at a Glance Up to 3.6 million measuring points per second Compact, lightweight design – even suitable for robot applications Precise measuring range resolution X (> 1200 measuring points) Blue light for applications on metal, organic or semi-transparent materials Optical Data Working range Z 280 … 1,280 mm Measuring range Z 1,000 mm Measuring range X 200 … 850 mm Linearity … Continue reading MLSL275
Add to cart -
MLSL276
$16,969.402D/3D Profile Sensor Features at a Glance Up to 3.6 million measuring points per second Compact, lightweight design – even suitable for robot applications Precise measuring range resolution X (> 1200 measuring points) Blue light for applications on metal, organic or semi-transparent materials Optical Data Working range Z 300 … 1,500 mm Measuring range Z 1,200 mm Measuring range X 250 … 1,350 mm Linearity … Continue reading MLSL276
Add to cart -
MLWL033
$39,419.702D/3D Profile Sensor Features at a Glance Up to 12 million measuring points per second Blue light for applications on metal, organic or semi-transparent materials IP69K Ecolab Optical Data Working range Z 300 … 1,000 mm Measuring range Z 700 mm Measuring range X 280 … 830 mm Linearity Deviation 175 µm Resolution Z 27 … 162 µm Resolution X 181 … 446 µm Light Source Laser (blue) Wavelength 405 nm Service Life (T = +25 … Continue reading MLWL033
Add to cart -
MLWL121
$24,738.802D/3D Profile Sensor Features at a Glance Up to 12 million measuring points per second Optimized profile quality thanks to HDR function Precise measuring range resolution X (> 2000 measuring points) Optical Data Working range Z 70 … 130 mm Measuring range Z 60 mm Measuring range X 30 … 52 mm Linearity Deviation 15 µm Resolution Z 2 … 4.9 µm Resolution X 17 … 26 µm Light Source Laser (red) Wavelength 660 nm … Continue reading MLWL121
