Werma eSIGN

Shop by Brand

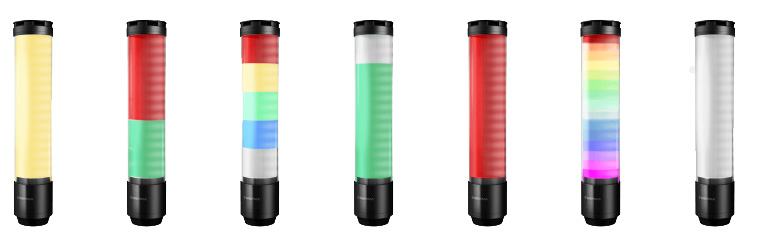

The eSIGN signal tower from WERMA has already set a new standard in the field of industrial signalization and convinced numerous customers. Powerful features, maximum compatibility, and an industrial design that combines functionality with style and robustness: This is how eSIGN, as the latest generation, defines the future of the signal tower. In addition to the IO-Link variant, the 24 V variant is now also available!

Werma eSIGN Brochure

Convince yourself of the possibilities and the performance of our latest signal tower:

  • Classical signal tower display in individual steps.
  • Autoscale mode for full-surface signaling and optimum visibility
  • Variable level indication from 0 to 100%
  • Individual control as required
  • Clean Room Approved

Light in new dimensions
More colors, more effects, more individuality. Or do you need a classic signal tower? A variable filling level indicator? Full-surface signaling, or completely individual signaling options? Diverse light effects such as permanent, blinking, flashing, or rotating lights.

In general, eSIGN offers the option to configure the colour, light intensity and light effect of optical signals. This function can be exploited in one of four modes:

Signal Tower Mode:
Individual eSIGN segments (e.g. 3) can be combined to create a single tower tier. This enables the creation of a classic signal tower in an electronically modular form. Individual tiers have fixed positions in this mode and may be off if the corresponding tier and optical signal are not activated.



Autoscale Mode:
eSIGN segments are divided automatically and equally between the number of actuated pins and status warnings. This enables the full potential of the eSIGN to be exploited by providing complete surface illumination. If, for example, only one status warning is active, then the entire surface of the eSIGN is illuminated in one colour for maximum visibility. If the segments cannot be divided equal-ly, the colour with the highest priority receives the last segment or remaining segments.

Filling Level Mode:
The filling level indicator enables accurate signalling of machine processes as a percentage. This mode is suitable for applications such as indicating work progress or material availability.





Individual Mode:
Each eSIGN segment (9 or 15 per tower) can be set and actuated completely individually, thus enabling maximum customising of signalling options.





Audible signalling systems are an indispensable part of daily working processes all over the world. This does not apply solely to the safety of personnel and protection of equipment, but also smooth workflows and the comforting assurance that everything is running okay.

The new eSIGN offers the option of a siren with up to 10 different tones that can also be set to meet application-specific requirements.

The siren can of course be combined with light effects, variable sound output options and uncomplicated configuration.

eSIGN represents a major step forward – and a visible sign of technological progress that we resolutely encourage. With electronic modularity, a robust industrial design and powerful features, it sets new standards in terms of individuality and flexibility. And what is the result of all this? A quantum leap in terms of possibilities. Or, put simply: new dimensions in signaling.
