$82.70

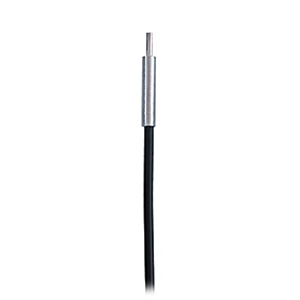

Glass Fiber-Optic Cable
Features at a Glance
Optical Data |
|
|---|---|
| Fiber Bundle Diameter | 0.5 mm |
| Range with Sensor Type U_88__ | 16 mm |
| Range with Sensor Type U_66__ | 8 mm |
| Range with Sensor Type U_55__ | 4 mm |
| Opening Angle | 68 ° |
| Fiber | Step Index |
| Fiber Diameter | 50 µm |
| Fiber Distribution | statistical mixture |
Laser Distance Sensor Features at a Glance Analog output: 4…20 mA Wide working range and precise detection thanks to DS technology No interactive influence Intuitive operating concept Optical Data Working Range 0 … 10,000 mm Setting Range 50 … 10,000 mm Reproducibility maximum 3 mm* Linearity Deviation 10 mm* Light Source Laser (red) Wavelength 660 nm Service Life (T = +25 °C) 100,000 h Laser Class (EN 60825-1) … Continue reading P1PY108 →
Add to cart
Laser Distance Sensor Features at a Glance Graphical display for easy operation Analog output (0…10 V/4…20 mA) Secure detection of black objects also in extremely inclined positions with wintec Reliable in case of glossy objects with wintec 2 mutually independent switching outputs Optical Data Working Range 50 … 3,050 mm Measuring Range 3,000 mm Reproducibility maximum 1 mm Linearity Deviation (200…3050 mm) … Continue reading OY1P303P0102 →
Add to cart
Laser Distance Sensor Features at a Glance Minimal switching hysteresis Switching point independent of material, color and brightness CMOS line array Highly accurate switching distance Optical Data Range 240 mm Setting Range 40 … 240 mm Switching Hysteresis < 0.5 % Light Source Laser (red) Wavelength 655 nm Service Life (T = +25 °C) 100,000 h Laser Class (EN 60825-1) 1 Max. Ambient Light 10,000 Lux Light … Continue reading OCP242X0135 →
Add to cartLaser Distance Sensor Features at a Glance Response time: < 660 µs (speed-mode) High resolution: 8 µm (resolution-mode) Linearity: 0,1 % (resolution-mode) Zoom function Measured value independent of material, color and brightness Optical Data Working Range 30 … 80 mm Measuring Range 50 mm Resolution 8 µm Resolution (Speed-Mode) 12 µm Linearity 0.1 % Linearity (Speed-Mode) 0.2 % Linearity Deviation 50 µm Light Source Laser (red) … Continue reading CP08MHT80 →
Add to cart
