$259.00

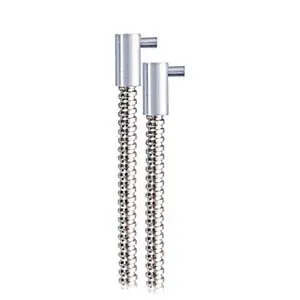

Glass Fiber-Optic Cable
Features at a Glance
Optical Data |
|
|---|---|
| Fiber Bundle Diameter | 1.1 mm |
| Range with Sensor Type U_87__ | 600 mm |
| Range with Sensor Type U_88__ | 400 mm |
| Range with Sensor Type U_66__ | 200 mm |
| Range with Sensor Type U_55__ | 100 mm |
| Opening Angle | 68 ° |
| Fiber | Step Index |
| Fiber Diameter | 50 µm |
Laser Distance Sensor Features at a Glance CMOS line array Highly accurate switching distance Minimal switching hysteresis Switching point independent of material, color and brightness Optical Data Range 660 mm Setting Range 60 … 660 mm Switching Hysteresis < 1 % Light Source Laser (red) Wavelength 655 nm Service Life (T = +25 °C) 100,000 h Laser Class (EN 60825-1) 2 Max. Ambient Light 10,000 Lux Light … Continue reading CP70QXVT80 →
Add to cart
Laser Distance Sensor Features at a Glance 2 mutually independent switching outputs Wide working range and precise detection thanks to DS technology No interactive influence Built-in acceleration sensor Optical Data Working Range 0 … 10,000 mm Setting Range 50 … 10,000 mm Reproducibility maximum 3 mm* Linearity Deviation 10 mm* Switching Hysteresis < 15 mm Light Source Laser (red) Wavelength 660 nm Service Life (T = +25 … Continue reading P1PY111 →
Add to cart
Laser Distance Sensor Triangulation Features at a Glance Highly precise measurement with a maximum linearity deviation of 0.05% Constant, surface-independent measured values Thermally stable measured values without any warm-up phase Industry 4.0 compatible thanks to Industrial Ethernet Optical Data Working Range 200 … 1,000 mm Measuring Range 800 mm Reproducibility maximum 100 µm Reproducibility: 1 Sigma 15 µm Linearity Deviation 375 µm Light … Continue reading PNBC108 →
Add to cart
Laser Distance Sensor Features at a Glance Secure detection of black objects also in extremely inclined positions with wintec No mutual interference with wintec Interference-free towards gloss in the background with wintec Reliable in case of glossy objects with wintec Miniature design Optical Data Working Range 0 … 1,000 mm Setting Range 100 … 1,000 mm Switching Hysteresis < 20 mm Light Source … Continue reading P1KY001 →
Add to cart
