$263.00

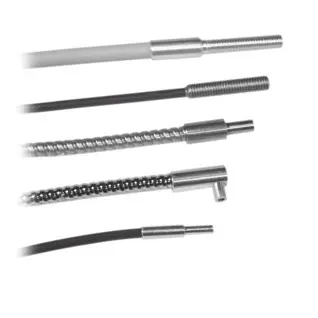

Glass Fiber-Optic Cable
Features at a Glance
Optical Data |
|
|---|---|
| Fiber Bundle Diameter | 1.6 mm |
| Range with Sensor Type U_88__ | 160 mm |
| Range with Sensor Type U_66__ | 75 mm |
| Range with Sensor Type U_55__ | 30 mm |
| Opening Angle | 68 ° |
| Fiber | Step Index |
| Fiber Diameter | 50 µm |
| Fiber Distribution | statistical mixture |
Laser Distance Sensor Features at a Glance CMOS line array Highly accurate switching distance Minimal switching hysteresis Switching point independent of material, color and brightness Optical Data Range 660 mm Setting Range 60 … 660 mm Switching Hysteresis < 1 % Light Source Laser (red) Wavelength 655 nm Service Life (T = +25 °C) 100,000 h Laser Class (EN 60825-1) 1 Max. Ambient Light 10,000 Lux Light … Continue reading OCP662X0135 →
Add to cartLaser Distance Sensor Features at a Glance Minimal switching hysteresis Switching point independent of material, color and brightness CMOS line array Highly accurate switching distance Optical Data Range 240 mm Setting Range 40 … 240 mm Switching Hysteresis < 0.5 % Light Source Laser (red) Wavelength 655 nm Service Life (T = +25 °C) 100,000 h Laser Class (EN 60825-1) 1 Max. Ambient Light 10,000 Lux Light … Continue reading OCP242X0135 →
Add to cart
Laser Distance Sensor Features at a Glance Graphical display for easy operation Analog output (0…10 V/4…20 mA) Secure detection of black objects also in extremely inclined positions with wintec Reliable in case of glossy objects with wintec 2 mutually independent switching outputs Optical Data Working Range 50 … 3,050 mm Measuring Range 3,000 mm Reproducibility maximum 1 mm Linearity Deviation (200…3050 mm) … Continue reading OY1P303P0102 →
Add to cart
Laser Distance Sensor Features at a Glance 2 mutually independent switching outputs Wide working range and precise detection thanks to DS technology No interactive influence Built-in acceleration sensor Optical Data Working Range 0 … 10,000 mm Setting Range 50 … 10,000 mm Reproducibility maximum 3 mm* Linearity Deviation 10 mm* Switching Hysteresis < 15 mm Light Source Laser (red) Wavelength 660 nm Service Life (T = +25 … Continue reading P1PY111 →
Add to cart
