Email to InquireAC Power 2-Phase Closed Loop Stepper Motor System

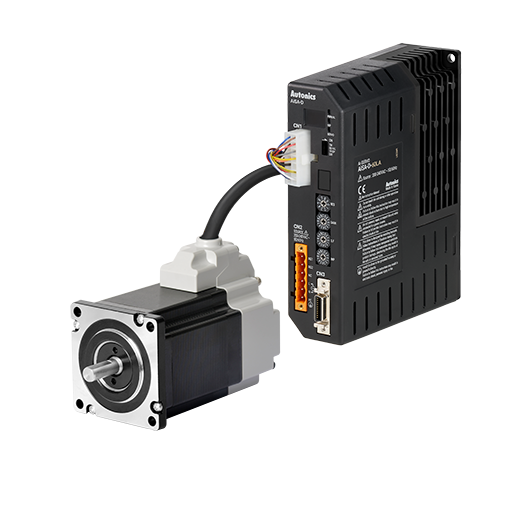

The AiSA series Ai-SERVO motors are AC powered 2-phase closed loop stepper motor system featuring integrated drivers. The AC powered motor system can maintain higher torque during high speed drive compared to DC type motors and do not require separate switching mode power supplies. The automatic current down function reduces the electric current when the motor stops (load change) to minimize heat generation.
Motor, 5 Phase Stepping, 60mm Square, Dual shaft, Geared Shaft Type, 1:7.2 Ratio, 1.4A/Phase, 40 kgf-cm Torque Stepper Motor Motor Shaft Dual shaft Frame size 60 mm Motor type Geared with brake built-in Rated Current (A/Phase) 1.4 A Rotor Inertia 280 g.cm Resistance (ohm/phase) 1.1 Basic Step Angle 0.1 A Gear Ratio 01:07.2 Allowable Angle … Continue reading Autonics A40K-M566W-G7.2 →
Add to cart
Stepper Motor Motor Shaft Dual shaft Frame size 24 mm Motor type Shaft type Rated Current (A/Phase) 0.75 A Max. Holding Torque 0.28 kgf-cm Rotor Inertia 8.2 g.cm Motor Length 46.5 mm Resistance (ohm/phase) 1.7 Wire connection Pentagon
Add to cart
Stepper Motor Motor Shaft Single shaft Frame size 24 mm Motor type Shaft type Rated Current (A/Phase) 0.75 A Max. Holding Torque 0.28 kgf-cm Rotor Inertia 8.2 g.cm Motor Length 46.5 mm Resistance (ohm/phase) 1.7 Wire connection Pentagon
Add to cartMotor, 5 Phase Stepping, 42mm Square, Geared Shaft Type, 1:10 Ratio, 0.75A/Phase, 15 kgf-cm Torque Stepper Motor Motor Shaft Single shaft Frame size 42 mm Motor type Geared build-in type Rated Current (A/Phase) 0.75 A Rotor Inertia 68 g.cm Resistance (ohm/phase) 2.2 Basic Step Angle 0.072 A Gear Ratio 1:10 Allowable Angle 0 ~ 180
Add to cart
