$3,836.40

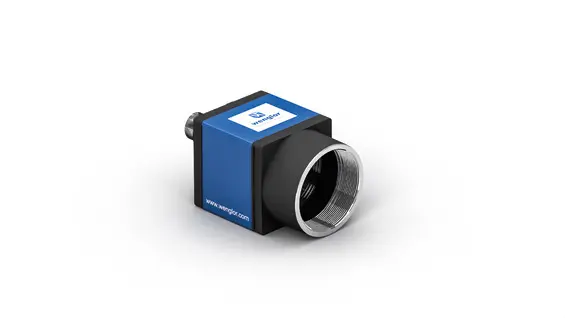

Vision Eye
Features at a Glance
Optical Data |
|
|---|---|
| Resolution | 2,448 × 2,048 Pixel |
| Resolution | 5 MP |
| Aspect Ratio | 5:4 |
| Pixel Size | 3.45 × 3.45 µm |
| Sensor Type | CMOS |
| Sensor Designation | Sony IMX264LLR-C |
| Image Chip | monochrome |
| Image chip size | 2/3″ |
| Frame Rate | < 22 fps |
Laser Distance Sensor Features at a Glance Response time: < 1250 µs (speed-mode) High resolution: 50 µm (resolution-mode) Linearity: 0,15 % (resolution-mode) Zoom function Measured value independent of material, color and brightness Optical Data Working Range 50 … 350 mm Measuring Range 300 mm Resolution 50 µm Resolution (Speed-Mode) 80 µm Linearity 0.15 % Linearity (Speed-Mode) 0.2 % Linearity Deviation 450 µm Light Source Laser (red) … Continue reading CP35MHT80 →
Add to cart
Laser Distance Sensor Features at a Glance Graphical display for easy operation Analog output (0…10 V/4…20 mA) Secure detection of black objects also in extremely inclined positions with wintec Reliable in case of glossy objects with wintec 2 mutually independent switching outputs Optical Data Working Range 50 … 3,050 mm Measuring Range 3,000 mm Reproducibility maximum 1 mm Linearity Deviation (200…3050 mm) … Continue reading OY1P303P0102 →
Add to cart
Laser Distance Sensor Features at a Glance Secure detection of black objects also in extremely inclined positions with wintec Industrial Ethernet Reliable in case of glossy objects with wintec Web server and graphic display for simple operation Optical Data Working Range 0.1 … 10.1 m Reproducibility maximum 7 mm Linearity Deviation 20 mm Light Source Laser (red) Wavelength 660 nm Service … Continue reading OY2TA104P0150P →
Add to cart
Laser Distance Sensor Features at a Glance 2 mutually independent switching outputs Graphical display for easy operation Switching output A1 as analog output switchable (0…10 V/4…20 mA) Temperature drift eliminable Optical Data Working Range 0.1 … 10.1 m Measuring Range 10 m Resolution 1 … 12 mm Linearity 0.5 % Linearity Deviation 50 mm Switching Hysteresis 3 … 20 mm Light Source Laser (red) Wavelength 660 nm Service … Continue reading Y1TA100QXT3 →
Add to cart
