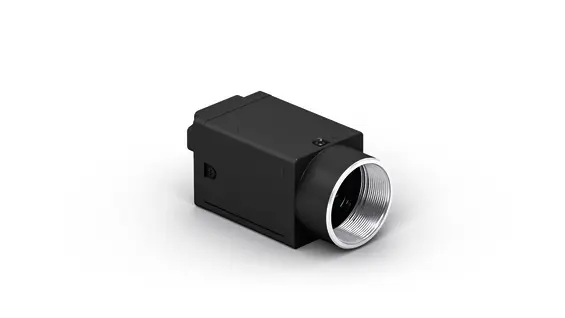

Features at a Glance
Optical Data |
|
|---|---|
| Resolution | 4,024 × 3,036 Pixel |
| Resolution | 12 MP |
| Aspect Ratio | 4:3 |
| Pixel Size | 1.85 × 1.85 µm |
| Sensor Type | CMOS |
| Sensor Designation | IMX226 |
| Image Chip | monochrome |
| Image chip size | 1/1,7” |
| Frame Rate | < 9.7 fps |
Laser Distance Sensor Features at a Glance Response time: < 660 µs (speed-mode) High resolution: 8 µm (resolution-mode) Linearity: 0,1 % (resolution-mode) Zoom function Measured value independent of material, color and brightness Optical Data Working Range 30 … 80 mm Measuring Range 50 mm Resolution 8 µm Resolution (Speed-Mode) 12 µm Linearity 0.1 % Linearity (Speed-Mode) 0.2 % Linearity Deviation 50 µm Light Source Laser (red) … Continue reading CP08MHT80 →
Add to cart
Laser Distance Sensor Features at a Glance 2 mutually independent switching outputs Graphical display for easy operation Switching output A1 as analog output switchable (0…10 V/4…20 mA) Temperature drift eliminable Optical Data Working Range 0.1 … 10.1 m Measuring Range 10 m Resolution 1 … 12 mm Linearity 0.5 % Linearity Deviation 50 mm Switching Hysteresis 3 … 20 mm Light Source Laser (red) Wavelength 660 nm Service … Continue reading Y1TA100QXT3 →
Add to cart
Laser Distance Sensor Features at a Glance Smallest recognizable distance difference: 200 µm Spot diameter: 0,8 mm Optical Data Range 100 mm Setting Range 60 … 100 mm Switching Hysteresis < 200 µm Light Source Laser (red) Wavelength 660 nm Service Life (T = +25 °C) 100,000 h Laser Class (EN 60825-1) 2 Max. Ambient Light 10,000 Lux Light Spot Diameter 0.8 mm Focus Distance 110 mm
Add to cart
Laser Distance Sensor Triangulation Features at a Glance Analog output: 4…20 mA Wireless settings via Bluetooth Graphical display for easy operation Measured value independent of material, color and brightness Rugged aluminium housing Optical Data Working Range 60 … 660 mm Setting Range 60 … 660 mm Reproducibility maximum 250 µm Reproducibility: 1 Sigma 25 µm Linearity Deviation 900 µm Light Source Laser (blue) Wavelength 405 nm Service … Continue reading P3PC341 →
Add to cart
