$678.00
8 in stock

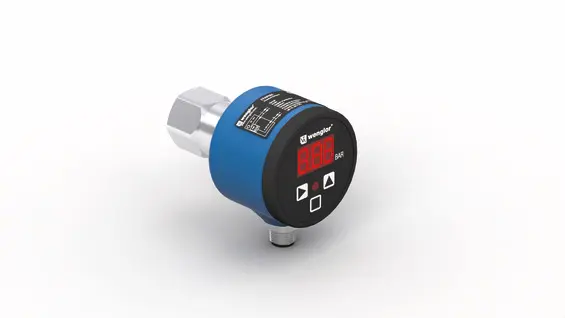

Pressure Sensor
Features at a Glance
Sensor-specific data |
|
|---|---|
| Measuring Range | -0.5 … 0 bar |
| Measurement Type | relative |
| Maximum overload pressure | 1 bar |
| Bursting pressure | 1.5 bar |
| Setting Range | 4 … 100 % |
| Medium | Liquids, gases |
| Switching Hysteresis | 2 % |
| Measuring error | < ± 0.5 % |
| Temperature Drift | 0.025 %/K |
Laser Distance Sensor Features at a Glance Miniature design 2 mutually independent switching outputs IO-Link interface Large working range Optical Data Working Range 0 … 1,500 mm Setting Range 50 … 1,500 mm Switching Hysteresis < 30 mm Light Source Laser (infrared) Wavelength 940 nm Service Life (T = +25 °C) 100,000 h Laser Class (EN 60825-1) 1 Max. Ambient Light 10,000 Lux Light Spot Diameter see Table 1
Add to cart
Laser Distance Sensor Features at a Glance 2 mutually independent switching outputs Graphical display for easy operation Switching output A1 as analog output switchable (0…10 V/4…20 mA) Temperature drift eliminable Optical Data Working Range 0.1 … 10.1 m Measuring Range 10 m Resolution 1 … 12 mm Linearity 0.5 % Linearity Deviation 50 mm Switching Hysteresis 3 … 20 mm Light Source Laser (red) Wavelength 660 nm Service … Continue reading Y1TA100QXT3 →
Add to cart
Laser Distance Sensor Features at a Glance Response time: < 1250 µs (speed-mode) High resolution: 50 µm (resolution-mode) Linearity: 0,15 % (resolution-mode) Zoom function Measured value independent of material, color and brightness Optical Data Working Range 50 … 350 mm Measuring Range 300 mm Resolution 50 µm Resolution (Speed-Mode) 80 µm Linearity 0.15 % Linearity (Speed-Mode) 0.2 % Linearity Deviation 450 µm Light Source Laser (red) … Continue reading CP35MHT80 →
Add to cart
Laser Distance Sensor Time of Flight Features at a Glance 2 mutually independent switching outputs Wide working range and precise detection thanks to DS technology No interactive influence Intuitive operating concept Large light spot Optical Data Working Range 0 … 5,000 mm Setting Range 50 … 5,000 mm Reproducibility maximum 3 mm* Linearity Deviation 10 mm* Switching Hysteresis < 15 mm Light Source Laser (red) … Continue reading P1PY131 →
