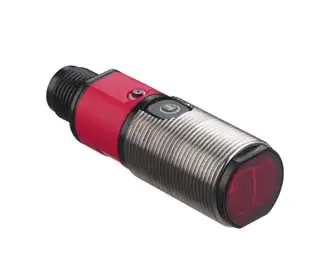

Energetic diffuse sensor
| Series | 328 |
| Operating principle | Diffuse reflection principle |
| Application | Detection of labels on bottles |
| Operating range, white 90% | 0.08 … 0.1 m |
| Operating range limit, white 90% | 0.08 … 0.12 m |
| Light source | LED, Infrared |
| Protective circuit | Polarity reversal protection Short circuit protected |
| Supply voltage UB | 10 … 30 V, DC, Incl. residual ripple |
Throughbeam photoelectric sensor receiver Series 5B Operating principle Throughbeam principle Device type Receiver Optical data Operating range 0 … 10 m Operating range limit 0 … 15 m Electrical data Protective circuit Polarity reversal protection Short circuit protected Performance data Supply voltage UB 10 … 30 V, DC, Incl. residual ripple Residual ripple 0 … 15 %, From … Continue reading LE5B/N →
Add to cart
Polarized retro-reflective photoelectric sensor Series 5B Operating principle Reflection principle Optical data Operating range 0.02 … 5 m, With reflector TK(S) 100×100 Operating range limit 0.02 … 6.5 m, With reflector TK(S) 100×100 Light source LED, Red Electrical data Protective circuit Polarity reversal protection Short circuit protected Performance data Supply voltage UB 10 … 30 V, DC, Incl. residual ripple … Continue reading PRK5B/4X-1000-M8 →
Add to cart
Polarized retro-reflective photoelectric sensor Series 5B Operating principle Reflection principle Optical data Operating range 0.02 … 5 m, With reflector TK(S) 100×100 Operating range limit 0.02 … 6.5 m, With reflector TK(S) 100×100 Light source LED, Red Electrical data Protective circuit Polarity reversal protection Short circuit protected Performance data Supply voltage UB 10 … 30 V, DC, Incl. residual ripple … Continue reading PRK5B/NX-200-M12 →
Add to cart
Diffuse sensor with background suppression Series 3C Operating principle Diffuse reflection principle with background suppression Special version Special version Suppression of HF illumination (LED) Optical data Black-white error < 10% up to 250 mm Operating range, white 90% 0.005 … 0.6 m Operating range, gray 18% 0.01 … 0.5 m Operating range, black 6% 0.015 … Continue reading HT3CI.HF/4X-M8 →
Add to cart
