Description

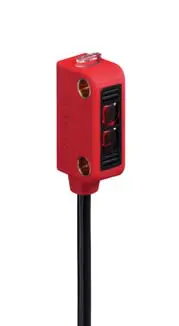

Diffuse sensor with background suppression
| Series | 2 |
| Operating principle | Diffuse reflection principle with background suppression |
| Application | Detection of small parts |
| Special version | Permanently set range Small light spot (S) |
| Operating range, white 90% | 0.005 … 0.028 m |
| Operating range, gray 18% | 0.006 … 0.024 m |
| Operating range, black 6% | 0.007 … 0.02 m |
| Operating range limit, white 90% | 0.001 … 0.035 m |
| Operating range limit, gray 18% | 0.003 … 0.033 m |
| Operating range limit, black 6% | 0.004 … 0.032 m |
| Permanently set operating range | 0.03 m |
| Light source | LED, Red |
| Protective circuit | Overvoltage protection Polarity reversal protection Short circuit protected Transient protection |
| Supply voltage UB | 10 … 30 V, DC |
| Residual ripple | 0 … 10 %, From UB |
| Open-circuit current | 0 … 20 mA |
