Description

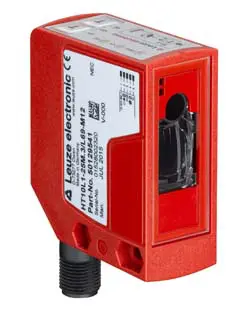

Diffuse sensor with background suppression
| Series | 10 |
| Operating principle | Diffuse reflection principle with background suppression |
| Application | Compartment fine positioning Exact object positioning Push-through protection in pallet warehouse |
| Type of scanning system | Optimized for use with reflective tape |
| Special version | 2 independent switching outputs Deactivation input |
| Operating range | 0.1 … 25 m |
| Operating range limit | 0.1 … 25 m |
| Light source | Laser, Red |
| Laser class | 1, IEC/EN 60825-1:2014 |
| Light spot size [at sensor distance] | 25 mm x 25 mm [25,000 mm] |
| Reproducibility (1 sigma) | 16 mm |
| Protective circuit | Polarity reversal protection Short circuit protected Transient protection |
| Supply voltage UB | 18 … 30 V, DC |
| Residual ripple | 0 … 15 %, From UB |
| Open-circuit current | 0 … 150 mA |
