Description

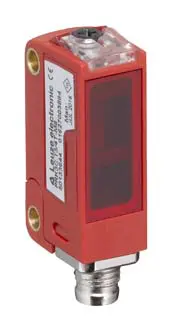

Diffuse sensor with background suppression
| Series | 3C |
| Operating principle | Diffuse reflection principle with background suppression |
| Application | Detection of highly transparent bottles Detection of objects with openings Detection of transparent films |
| Special version | Extra long light spot (XL) V-optics |
| Black-white error | < 20% up to 80 mm |
| Operating range, white 90% | 0.01 … 0.08 m |
| Operating range, gray 18% | 0.012 … 0.07 m |
| Operating range, black 6% | 0.012 … 0.06 m |
| Operating range limit, white 90% | 0.01 … 0.09 m |
| Operating range limit, gray 18% | 0.012 … 0.075 m |
| Operating range limit, black 6% | 0.012 … 0.065 m |
| Adjustment range | 20 … 90 mm |
| Light source | LED, Red |
| Light spot size [at sensor distance] | 5 mm x 40 mm [70 mm] |
