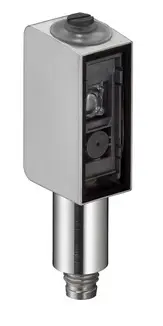

HT53CL1.X/LG-M8

$397.00

SKU: HT53CL1XLGM8 / 50148176 Category:

Description

Diffuse sensor with background suppression

Series 53C
Operating principle Diffuse reflection principle with background suppression
Special version Extra long light spot (XL)
HYGIENE design
Black-white error < 10% up to 240 mm
Operating range, white 90% 0.02 … 0.45 m
Operating range, gray 18% 0.02 … 0.35 m
Operating range, black 6% 0.02 … 0.25 m
Operating range limit 0.02 … 0.45 m
Adjustment range 20 … 450 mm
Light source Laser, Red
Laser class 1, in accordance with IEC 60825-1:2014 (EN 60825-1:2014)
Light spot size [at sensor distance] 2 mm x 30 mm [50 mm]
Shift angle Typ. ± 2°
