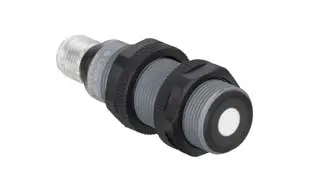

HTU318-300/2T-M12

$237.00

SKU: HTU3183002TM12 / 50136071 Category:

Description

Ultrasonic sensor

Series 318
Operating principle Diffuse reflection principle with background suppression
Contains 2x M18 mounting nut
Special version Teach input
Operating range 0.04 … 0.3 m
Operating range Guaranteed operating range
Opening angle 7 °
Direction of beam Front
Ultrasonic frequency 300 kHz
Resolution < 2 mm
Repeatability 0.5 %
Reference value repeatability End value
Temperature drift, relative 5 %/K
Protective circuit Inductive protection
Polarity reversal protection
Short circuit protected
Supply voltage UB 10 … 30 V, DC
Residual ripple 0 … 5 %, From UB
Open-circuit current 0 … 35 mA
Switching hysteresis 1 %
Product PDF
