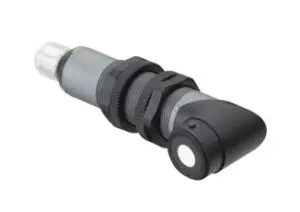

HTU318-400.W3/4PK-M12

$289.00

SKU: HTU318400W34PKM12 / 50136098 Category:

Description

Ultrasonic sensor

Series 318
Operating principle Diffuse reflection principle with background suppression
Contains 2x M18 mounting nut
Special version 2 independent switching outputs
Multiplex operation
Synchronous operation
Operating range 0.05 … 0.4 m
Operating range Guaranteed operating range
Opening angle 8 °
Direction of beam 90° – deflection
Ultrasonic frequency 300 kHz
Resolution < 2 mm
Repeatability 0.5 %
Reference value repeatability End value
Temperature drift 5 %
Reference value, temperature drift, relative End value
Protective circuit Inductive protection
Polarity reversal protection
Short circuit protected
Supply voltage UB 10 … 30 V, DC
Residual ripple 0 … 7 %, From UB
Open-circuit current 0 … 50 mA
Switching hysteresis 1 %
