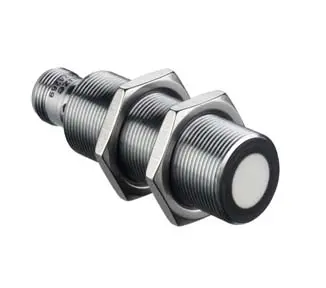

HTU418B-1000/4TX-M12

$352.00

SKU: HTU418B10004TXM12 / 50124270 Category:

Description

Ultrasonic sensor

Series 418B
Operating principle Diffuse reflection principle with background suppression
Contains 2x M18 mounting nut
Special version Teach input
Operating range 0.15 … 1 m
Operating range Guaranteed operating range
Opening angle 16 °
Direction of beam Front
Shape of sound lobe standard
Ultrasonic frequency 200 kHz
Repeatability 0.15 %
Reference value repeatability End value
Temperature drift, relative 0.17 %/K
Protective circuit Inductive protection
Polarity reversal protection
Short circuit protected
Supply voltage UB 15 … 30 V, DC
Residual ripple 0 … 10 %, From UB
Open-circuit current 30 … 50 mA
Switching hysteresis 10,000 µm
