IL008BE25VB

$101.00

Description

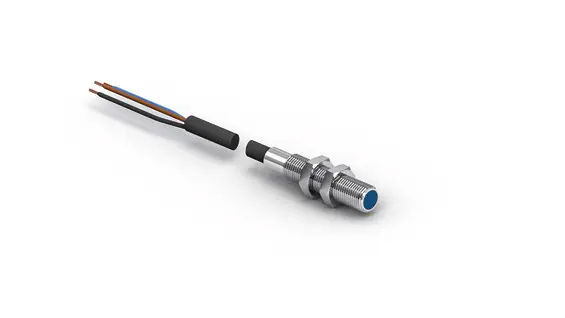

Inductive Sensor

Inductive Data

Switching Distance 0.8 mm
Correction Factors Stainless Steel V2A/CuZn/Al 0,68/0,45/0,36
Mounting flush
Mounting A/B/C/D in mm 0/5/2,4/0
Switching Hysteresis < 15 %

Electrical Data

Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 10 mA
Switching Frequency 5 kHz
Temperature Drift < 10 %
Temperature Range -25 … 80 °C
Switching Output Voltage Drop < 1 V
Switching Output/Switching Current 100 mA
Residual Current Switching Output < 100 µA
Short Circuit Protection yes
Reverse Polarity and Overload Protection yes
Protection Class III
