| Series | LCS-1 |
| Switching distance Sn | 1 … 8 mm |
| Assured switching distance | 8 mm |
| Protective circuit | Polarity reversal protection Short circuit protected |
| Supply voltage UB | 10 … 30 V, DC |
| Residual ripple | 0 … 10 %, From UB |
| Open-circuit current | 15 mA |
| Temperature drift, max. (in % of Sr) | 20 % |
| Repeatability, max. (in % of Sr) | 2 % |
| Rated operating current | 100 mA |

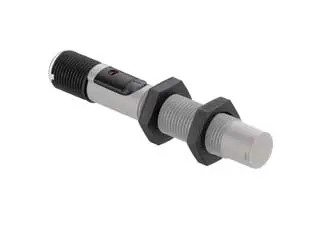

Series LCS-1 Switching distance Sn 1 … 4 mm Assured switching distance 4 mm Electrical data Protective circuit Polarity reversal protection Short circuit protected Performance data Supply voltage UB 10 … 30 V, DC Residual ripple 0 … 10 %, From UB Open-circuit current 15 mA Temperature drift, max. (in % of Sr) 20 % Repeatability, max. … Continue reading LCS-1M12P-F04NNO-M12 →
Add to cart
Series LCS-1 Switching distance Sn 1 … 4 mm Assured switching distance 4 mm Electrical data Protective circuit Polarity reversal protection Short circuit protected Performance data Supply voltage UB 10 … 30 V, DC Residual ripple 0 … 10 %, From UB Open-circuit current 15 mA Temperature drift, max. (in % of Sr) 20 % Repeatability, max. … Continue reading LCS-1M12M-F04NNC-M12 →
Add to cart
Series LCS-1 Switching distance Sn 2 … 15 mm Assured switching distance 15 mm Electrical data Protective circuit Polarity reversal protection Short circuit protected Performance data Supply voltage UB 10 … 30 V, DC Residual ripple 0 … 10 %, From UB Open-circuit current 15 mA Temperature drift, max. (in % of Sr) 20 % Repeatability, max. … Continue reading LCS-1M30M-F15NNO-M12 →
Add to cart
Series LCS-1 Switching distance Sn (embedded installation) 1 … 5 mm Switching distance Sn (non-embedded installation) 1 … 7.5 mm Assured switching distance (embedded installation) 3.6 mm Assured switching distance (non-embedded installation) 5.4 mm Electrical data Protective circuit Polarity reversal protection Short circuit protected Performance data Supply voltage UB 10 … 30 V, DC Residual ripple 0 … … Continue reading LCS-1M18P-F05PNP-M12-LT →
Add to cart
