Description

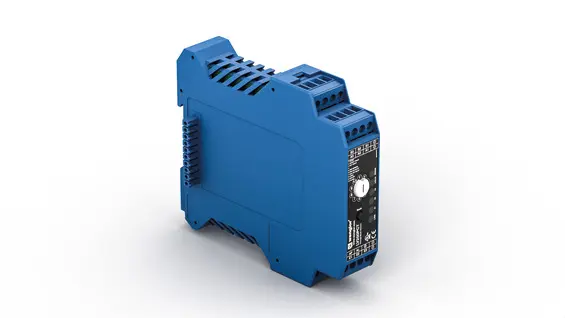

Controller
Features at a Glance
- Teach-in, external teach-in
- AND-OR logic
- Cascadable
- Master-slave operating mode
Optical Data |
|
|---|---|
| Range | 15,000 mm |
Electrical Data |
|
|---|---|
| Sensor Type | Control unit |
| Supply Voltage | 18 … 30 V |
| Current Consumption (Ub = 24 V) | 120 mA |
| Switching Frequency | 250 Hz |
| Response Time | 4 ms |
| On-/Off-Delay | 50 ms |
| Temperature Drift | < 10 % |
| Temperature Range | -25 … 60 °C |
| Switching Output Voltage Drop | < 2.5 V |
| Switching Output/Switching Current | 200 mA |
| Error Output/Switching Current | 200 mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Teach Mode | NT, MT |
| cascadable | yes |
| Logic Output | AND / OR |
| External teach-in input | yes |
| Protection Class | III |
