OCP662P0150P

$1,240.00

Description

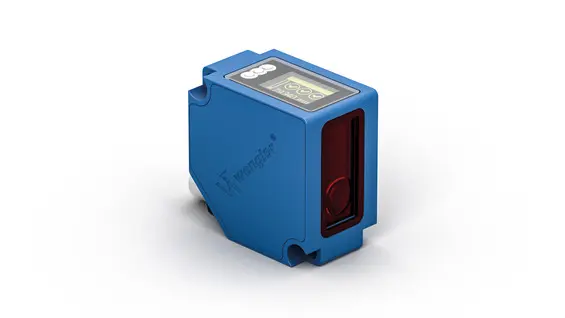

Laser Distance Sensor

Features at a Glance

  • Industrial Ethernet
  • Measured value independent of material, color and brightness
  • Web server and graphic display for simple operation
  • CMOS line array

Optical Data

Working Range 60 … 660 mm
Measuring Range 600 mm
Reproducibility maximum 70 … 1,000 µm
Linearity Deviation 100 … 1,000 µm
Light Source Laser (red)
Wavelength 655 nm
Service Life (T = +25 °C) 100,000 h
Laser Class (EN 60825-1) 1
Max. Ambient Light 10,000 Lux
Light Spot Diameter 3.6 × 0.9 mm
