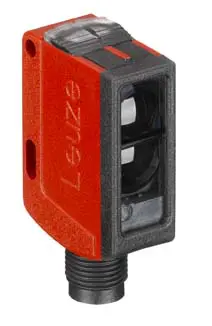

ODT25B/L6.32-2500,200-S12

$270.00

SKU: ODT25BL6322500200S12 / 50149096 Category:

Description

Distance diffuse sensor with background suppression

Series 25B
Operating principle Distance diffuse sensor with background suppression
Special version 2 independent switching outputs
Measurement value output
Black-white error ± 50 mm (2 … 90 % diffuse reflection)
Operating range 0.05 … 2.5 m
Operating range limit, white 90% 0.05 … 3 m
Adjustment range 150 … 3,000 mm, At 90% diffuse reflection
Light source LED, Infrared
Measurement range 50 … 3,000 mm
Resolution 1.0 mm with active average value filter
Accuracy -100 … 100 mm
Reproducibility (1 sigma) -15 … 15 mm, For measurement range 50 to 2500 mm, depending on diffuse reflectance and object distance, at 20°C after 20 min. warmup time, measurement object ≥ 50 x 50 mm², with average value filter 10 (factory settings)
Measurement value output via IO-Link
Optical distance measurement principle Time of flight
Protective circuit Polarity reversal protection
Short circuit protected
Transient protection
Supply voltage UB 18 … 30 V, DC, Incl. residual ripple
Residual ripple 0 … 15 %, From UB
Open-circuit current 0 … 32 mA
Switching hysteresis 30 mm, Adjustable
Switching hysteresis (reserve) 30 mm, Adjustable
