$1,092.00

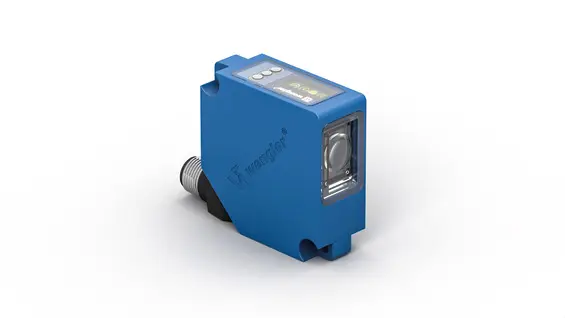

Color Sensor
Features at a Glance
Optical Data |
|
|---|---|
| Working Range | 30 … 40 mm |
| Working Distance | 35 mm |
| Light Source | White Light |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
| Light Spot Diameter | 3 mm |
Laser Distance Sensor Features at a Glance CMOS line array Highly accurate switching distance Minimal switching hysteresis Switching point independent of material, color and brightness Optical Data Range 660 mm Setting Range 60 … 660 mm Switching Hysteresis < 1 % Light Source Laser (red) Wavelength 655 nm Service Life (T = +25 °C) 100,000 h Laser Class (EN 60825-1) 1 Max. Ambient Light 10,000 Lux Light … Continue reading OCP662X0135 →
Add to cart
Laser Distance Sensor Features at a Glance Smallest recognizable distance difference: 200 µm Spot diameter: 0,8 mm Optical Data Range 100 mm Setting Range 60 … 100 mm Switching Hysteresis < 200 µm Light Source Laser (red) Wavelength 660 nm Service Life (T = +25 °C) 100,000 h Laser Class (EN 60825-1) 2 Max. Ambient Light 10,000 Lux Light Spot Diameter 0.8 mm Focus Distance 110 mm
Add to cartLaser Distance Sensor Features at a Glance Minimal switching hysteresis Switching point independent of material, color and brightness CMOS line array Highly accurate switching distance Optical Data Range 240 mm Setting Range 40 … 240 mm Switching Hysteresis < 0.5 % Light Source Laser (red) Wavelength 655 nm Service Life (T = +25 °C) 100,000 h Laser Class (EN 60825-1) 2 Max. Ambient Light 10,000 Lux Light … Continue reading CP25QXVT80 →
Add to cart
Laser Distance Sensor Features at a Glance Secure detection of black objects also in extremely inclined positions with wintec No mutual interference with wintec Interference-free towards gloss in the background with wintec Reliable in case of glossy objects with wintec Optical Data Working Range 0 … 3,000 mm Setting Range 200 … 3,000 mm Switching Hysteresis < 15 mm Light Source Laser (red) … Continue reading OY2P303A0135 →
Add to cart
