Description

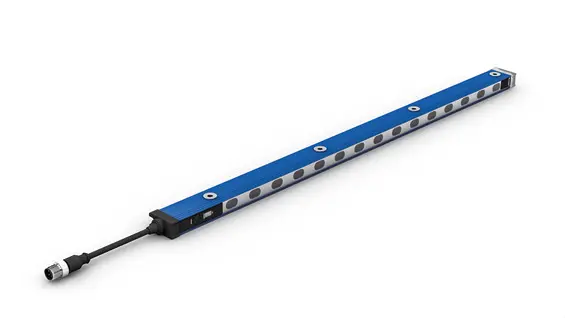

Light Curtain
Features at a Glance
- Error prevention during partial picking processes in shelves and storage locations
- Low mounting thanks to integrated reflector
- Rugged aluminium housing
- 360° visible, two-color job display
Optical Data |
|
|---|---|
| Range | 2,000 mm |
| Min. Distance to Reflector | 100 mm |
| Measurement Field Height (MFH) | 270 mm |
| Beam Distance | 30 mm |
| Switching Hysteresis | < 15 % |
| Light Source | Red Light |
| Polarization Filter | yes |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
| Opening Angle | 2.5 ° |
| Two-Lens Optic | yes |
