Description

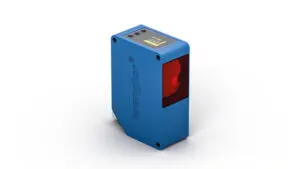

Laser Distance Sensor
Features at a Glance
- Secure detection of black objects also in extremely inclined positions with wintec
- Industrial Ethernet
- Reliable in case of glossy objects with wintec
- Web server and graphic display for simple operation
Optical Data |
|
|---|---|
| Working Range | 0.1 … 10.1 m |
| Reproducibility maximum | 7 mm |
| Linearity Deviation | 20 mm |
| Light Source | Laser (red) |
| Wavelength | 660 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Laser Class (EN 60825-1) | 1 |
| Beam Divergence | < 2 mrad |
| Max. Ambient Light | 5,000 Lux |
| Light Spot Diameter | see Table 1 |
