$439.00

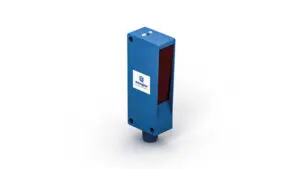

Reflex Sensor
Features at a Glance
Optical Data |
|
|---|---|
| Range | 800 mm |
| Setting Range | 80 … 800 mm |
| Switching Hysteresis | < 3 % |
| Light Source | Red Light |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
Laser Distance Sensor Features at a Glance Smallest recognizable distance difference: 200 µm Spot diameter: 0,8 mm Optical Data Range 100 mm Setting Range 60 … 100 mm Switching Hysteresis < 200 µm Light Source Laser (red) Wavelength 660 nm Service Life (T = +25 °C) 100,000 h Laser Class (EN 60825-1) 2 Max. Ambient Light 10,000 Lux Light Spot Diameter 0.8 mm Focus Distance 110 mm
Add to cart
Laser Distance Sensor Triangulation Features at a Glance Measured value independent of material, color and brightness Analog output: 4…20 mA Graphical display for easy operation Wireless settings via Bluetooth Rugged aluminium housing Optical Data Working Range 30 … 80 mm Setting Range 30 … 80 mm Reproducibility maximum 13 µm Reproducibility: 1 Sigma 0.8 µm Linearity Deviation 40 µm Light Source Laser (red) Wavelength 655 nm Service … Continue reading P3PC011 →
Add to cart
Laser Distance Sensor Features at a Glance Graphical display for easy operation Analog output (0…10 V/4…20 mA) Secure detection of black objects also in extremely inclined positions with wintec Reliable in case of glossy objects with wintec 2 mutually independent switching outputs Optical Data Working Range 50 … 3,050 mm Measuring Range 3,000 mm Reproducibility maximum 1 mm Linearity Deviation (200…3050 mm) … Continue reading OY1P303P0102 →
Add to cart
Laser Distance Sensor Triangulation Features at a Glance Switching point independent of material, color and brightness 2 mutually independent switching outputs Integrated jump detection Intuitive operating concept Rugged aluminium housing Optical Data Working Range 60 … 660 mm Setting Range 60 … 660 mm Reproducibility maximum 550 µm Reproducibility: 1 Sigma 30 µm Linearity Deviation 900 µm Switching Hysteresis < 0.5 % Light Source Laser (red) Wavelength … Continue reading P3PC301 →
Add to cart
