$309.00

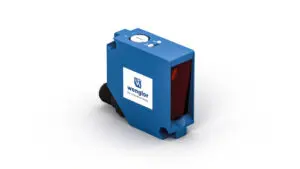

Reflex Sensor
Features at a Glance
Optical Data |
|
|---|---|
| Range | 200 mm |
| Setting Range | 50 … 200 mm |
| Switching Hysteresis | < 3 % |
| Light Source | Red Light |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
Laser Distance Sensor Features at a Glance Response time: < 1250 µs (speed-mode) High resolution: 50 µm (resolution-mode) Linearity: 0,15 % (resolution-mode) Zoom function Measured value independent of material, color and brightness Optical Data Working Range 50 … 350 mm Measuring Range 300 mm Resolution 50 µm Resolution (Speed-Mode) 80 µm Linearity 0.15 % Linearity (Speed-Mode) 0.2 % Linearity Deviation 450 µm Light Source Laser (red) … Continue reading CP35MHT80 →
Add to cart
Laser Distance Sensor Features at a Glance Secure detection of black objects also in extremely inclined positions with wintec No mutual interference with wintec Interference-free towards gloss in the background with wintec Reliable in case of glossy objects with wintec 2 mutually independent switching outputs Optical Data Working Range 0 … 3,000 mm Setting Range 200 … 3,000 mm Switching Hysteresis … Continue reading P1PY001 →
Add to cartLaser Distance Sensor Features at a Glance Minimal switching hysteresis Switching point independent of material, color and brightness CMOS line array Highly accurate switching distance Optical Data Range 240 mm Setting Range 40 … 240 mm Switching Hysteresis < 0.5 % Light Source Laser (red) Wavelength 655 nm Service Life (T = +25 °C) 100,000 h Laser Class (EN 60825-1) 2 Max. Ambient Light 10,000 Lux Light … Continue reading CP25QXVT80 →
Add to cart
Laser Distance Sensor Triangulation Features at a Glance Analog output: 4…20 mA Wireless settings via Bluetooth Graphical display for easy operation Measured value independent of material, color and brightness Rugged aluminium housing Optical Data Working Range 60 … 660 mm Setting Range 60 … 660 mm Reproducibility maximum 250 µm Reproducibility: 1 Sigma 25 µm Linearity Deviation 900 µm Light Source Laser (blue) Wavelength 405 nm Service … Continue reading P3PC341 →
Add to cart
