Description

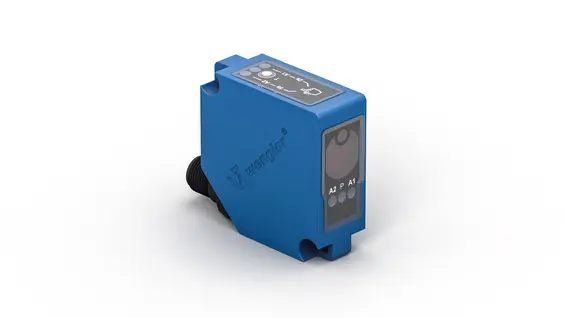

Laser Distance Sensor
Features at a Glance
- Secure detection of black objects also in extremely inclined positions with wintec
- No mutual interference with wintec
- Interference-free towards gloss in the background with wintec
- Reliable in case of glossy objects with wintec
- 2 mutually independent switching outputs
Optical Data |
|
|---|---|
| Working Range | 0 … 3,000 mm |
| Setting Range | 200 … 3,000 mm |
| Switching Hysteresis | < 15 mm |
| Light Source | Laser (red) |
| Wavelength | 660 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Laser Class (EN 60825-1) | 1 |
| Beam Divergence | < 2 mrad |
| Max. Ambient Light | 10,000 Lux |
| Light Spot Diameter | see Table 1 |
